Description
Description:
|

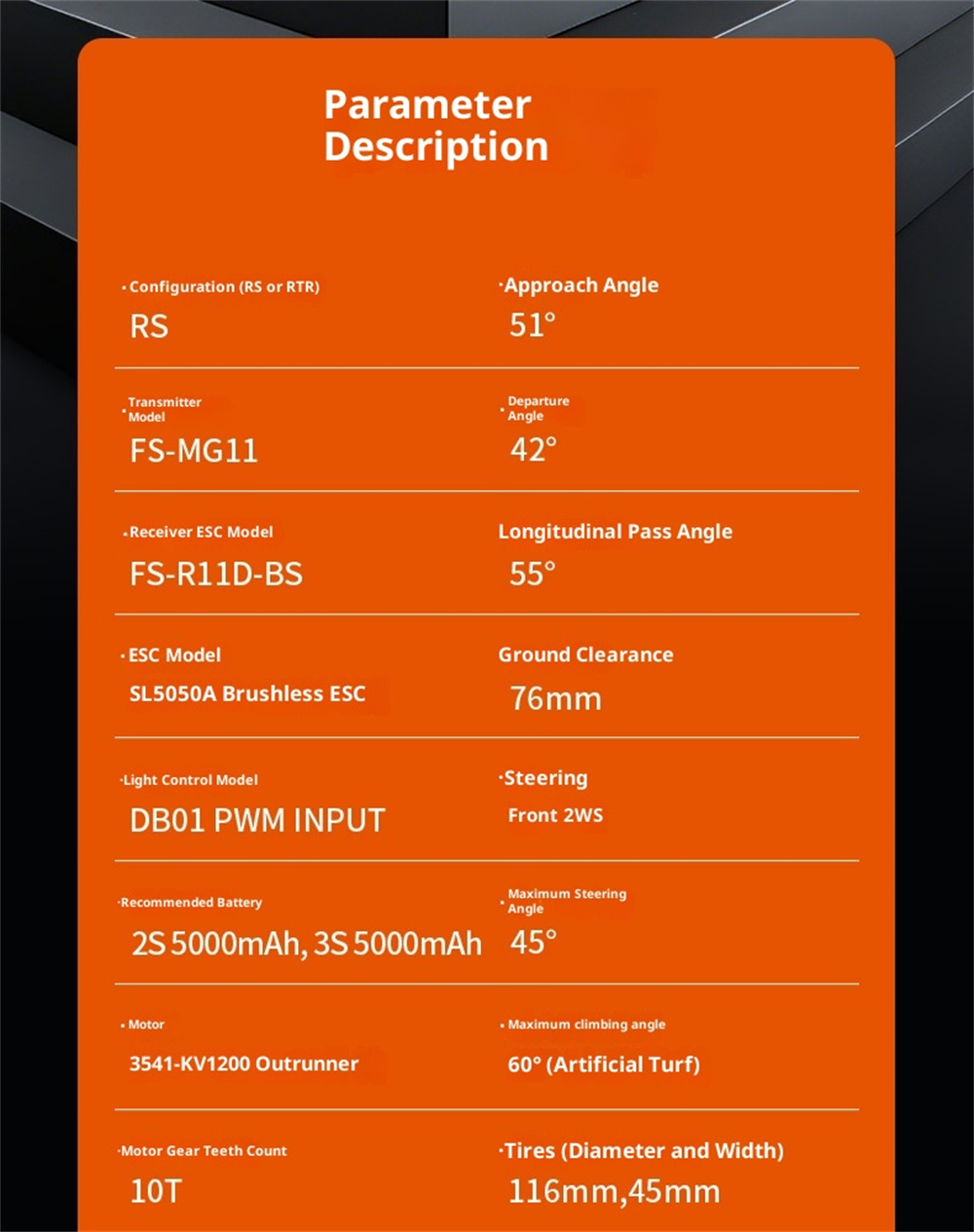

Basic information
|
Brand:FMS
Item No:FCX10
Version:RS
Scale:1/10
Color:Black
Max Speed:20km/h
|
Power System
|
ESC:SL50A 2-3s brushless esc
Motor:3541 1200kv brushless motor
Steering Servo:25kg metal gear waterproof servo
Shift Servo:13g metal gear servo*1
|
|
Transmitter
|
MG11
Receiver:R11D-BS
Frequency:2.4G
Channel:11CH
Remote Distance:150m
Required Battery:4X AA battery(not included)
|
Battery
|
Not Included
Recommended Battery:2S/3S 5000mAh XT60 Plug battery(not included)
Charging Time:About 4 hours
Battery Playing Time:Approx.30 minutes(3s 5000mah 35c)
|
|
Others
|
Departure Angle:38°
Approach Angle:45°
Breakover Angle:55°
Maxium Steering Angle:49°
Maxium Climbing Angle:60°
Steering Type:Front 2WS
Waterproof Class:Splash-proof
Bearing:Full bearing
Light Control:DB01 PWM input
Material:Plastic,hardware and electronic parts
|

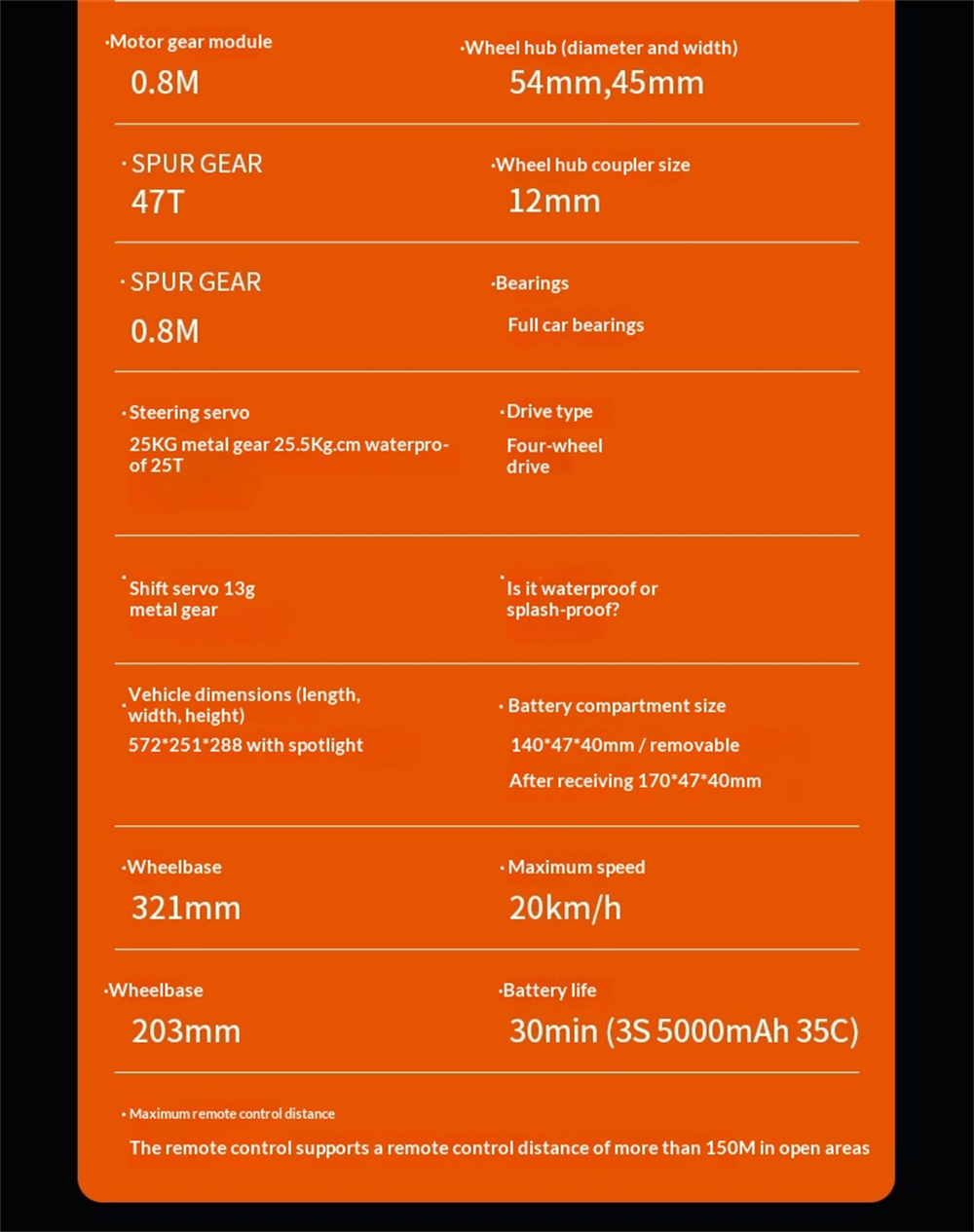

Dimension
|
Car Size:572*251*275mm
Wheelbase:321mm
Ground Clearance:68mm
Battery Compartment:140*47*40mm
/170*47*40mm(without receiver)
Tread:203mm
Tire Size:116*45mm
Wheelhub Size:54*27.4mm
Wheelhub Adaptor Size:12mm
|
Note:
Car battery and charger is not included,you need to prepare it by yourself
Features:

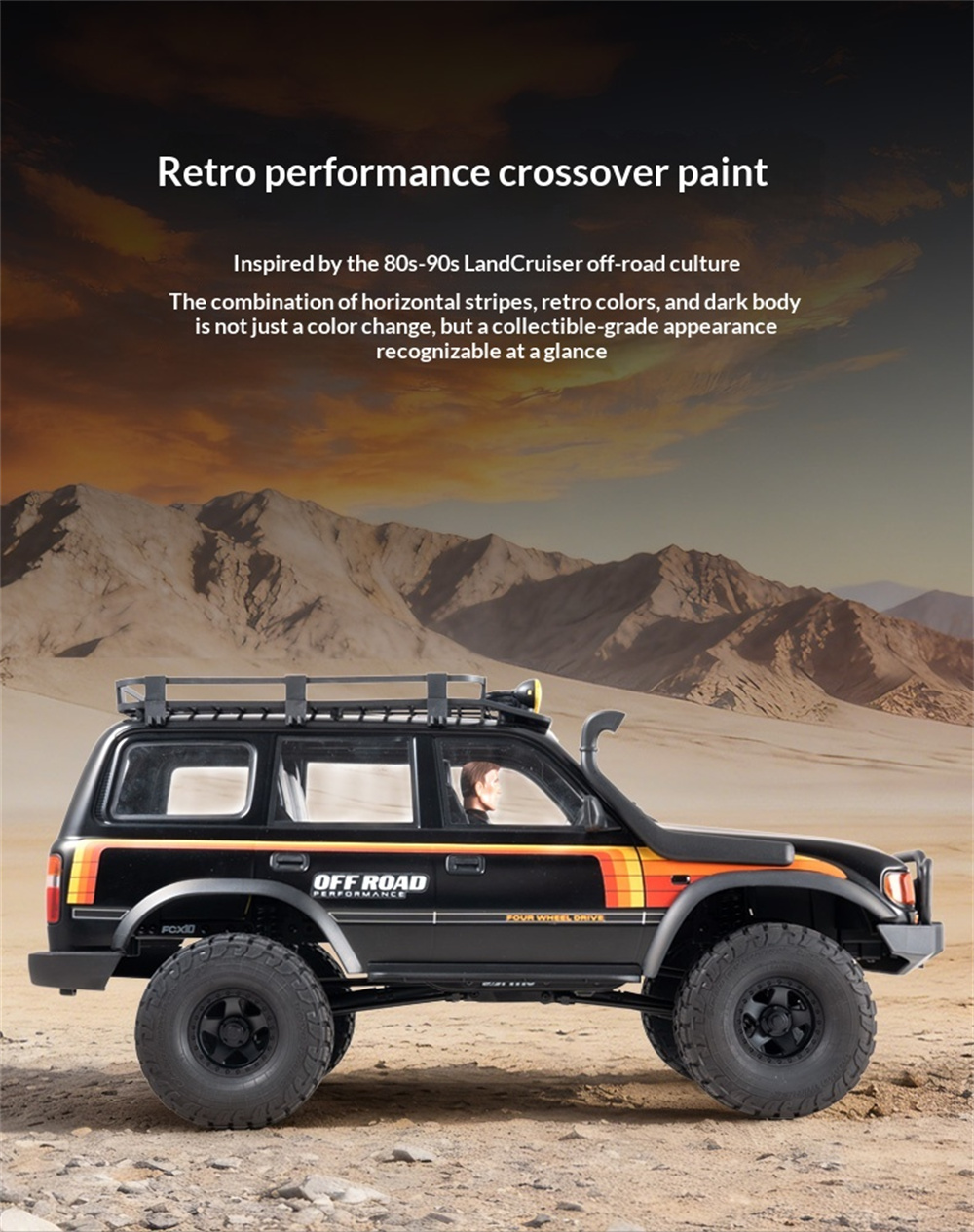

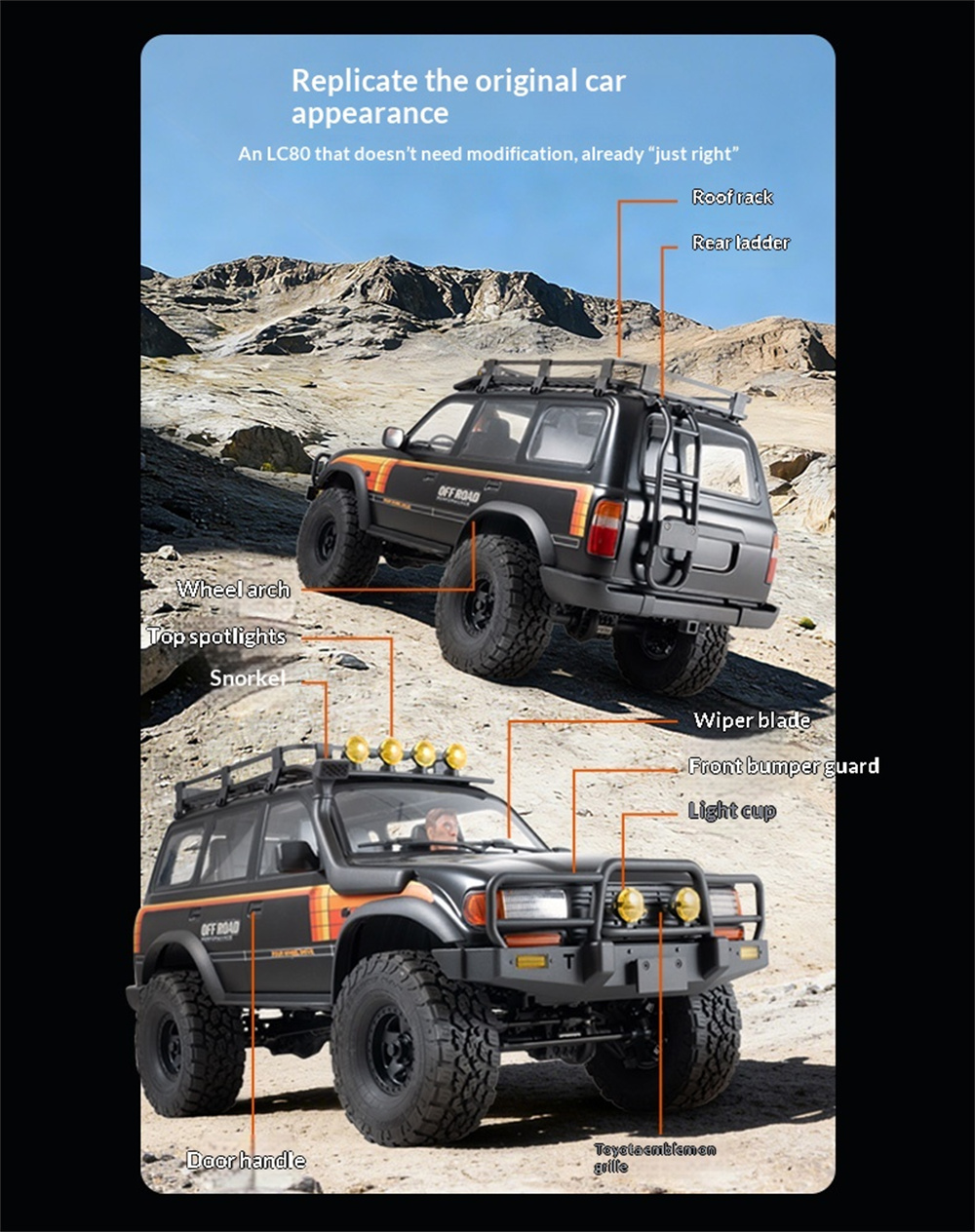

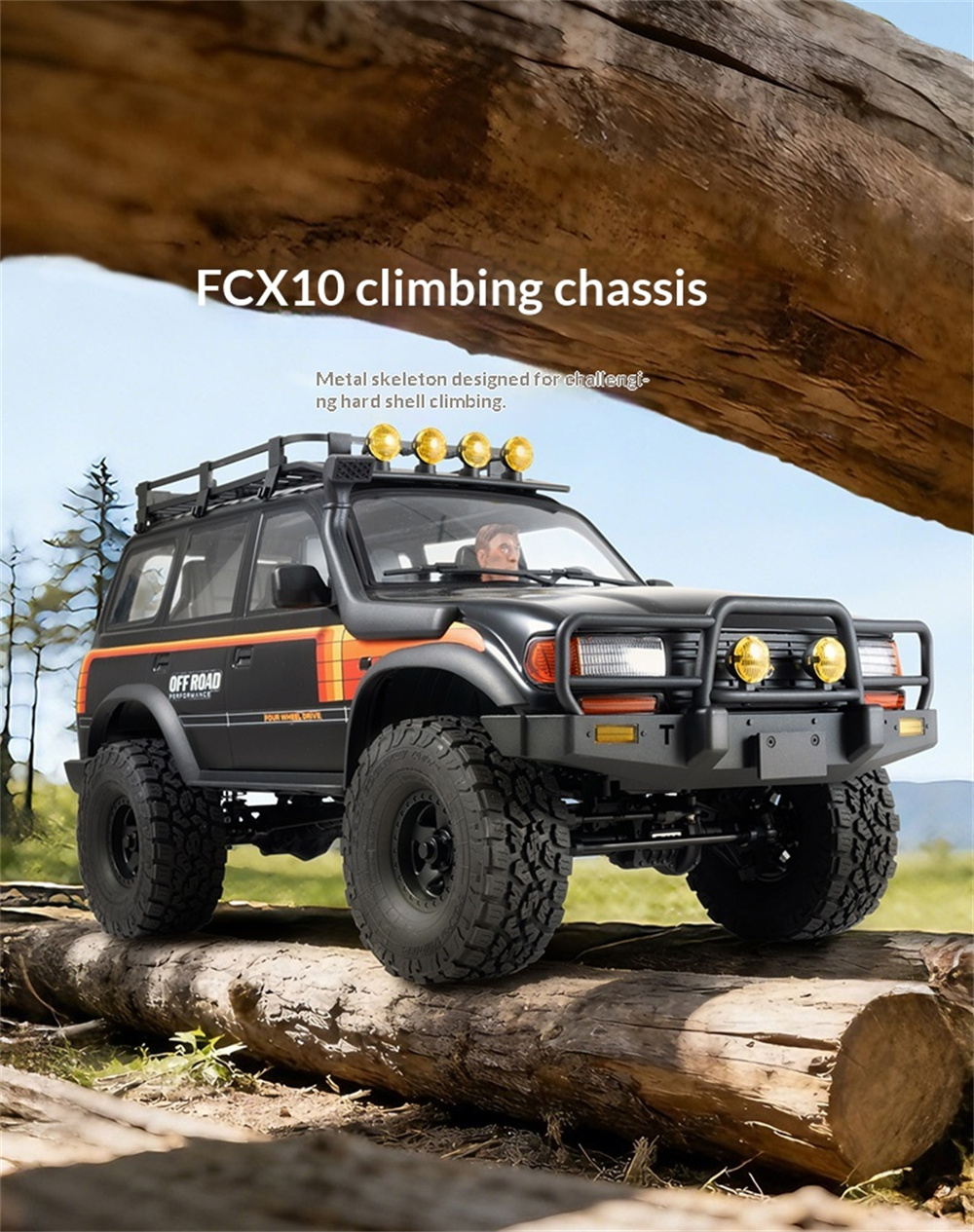

● for Toyota & OVR Officially Licensed Body
Realistically modeled Land Cruiser LC80 with full Toyota licensing and exclusive OVRmag co-branding.

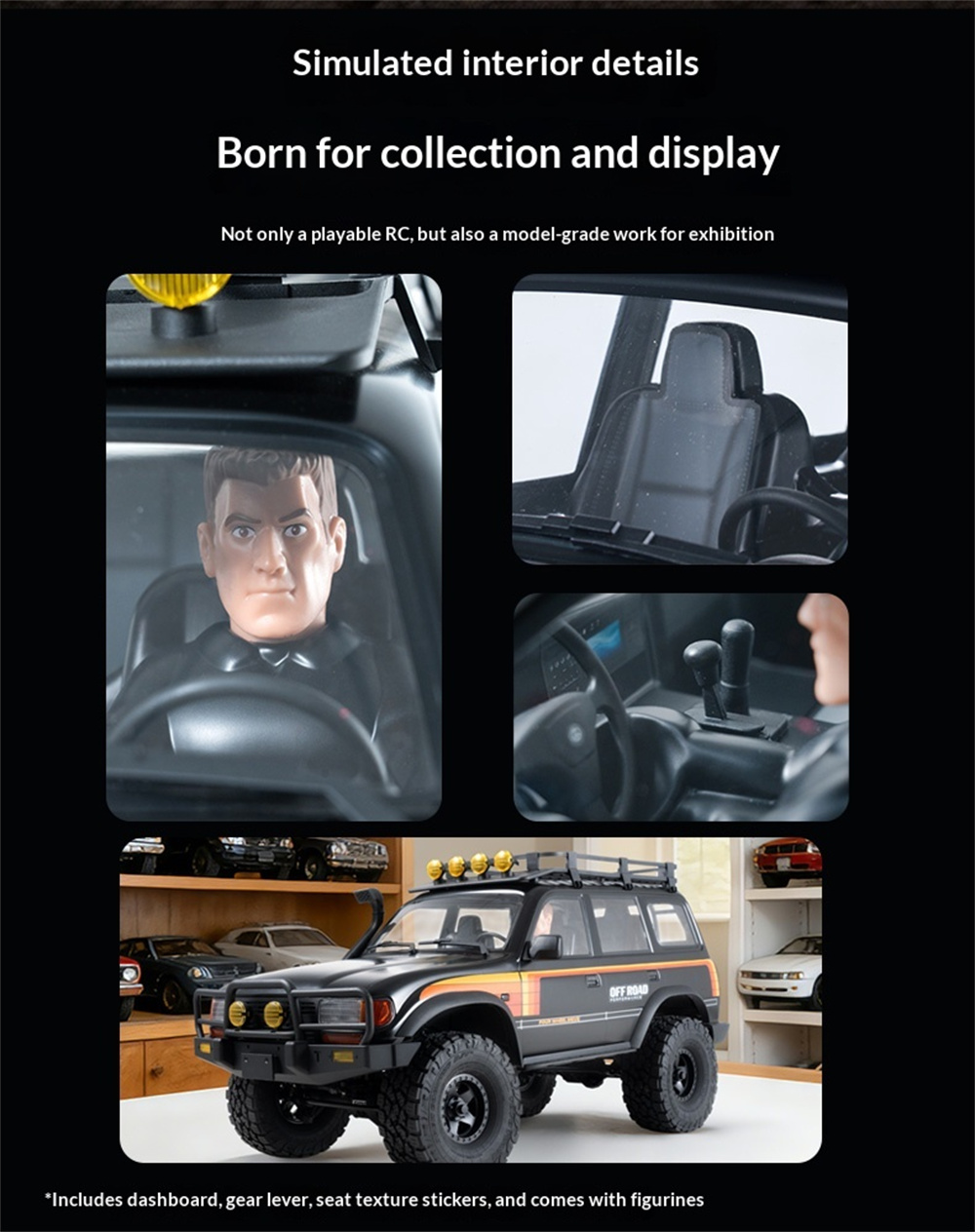

● Highly Detailed Interior
Includes molded dashboard, steering wheel, cockpit elements, and scale driver figure.

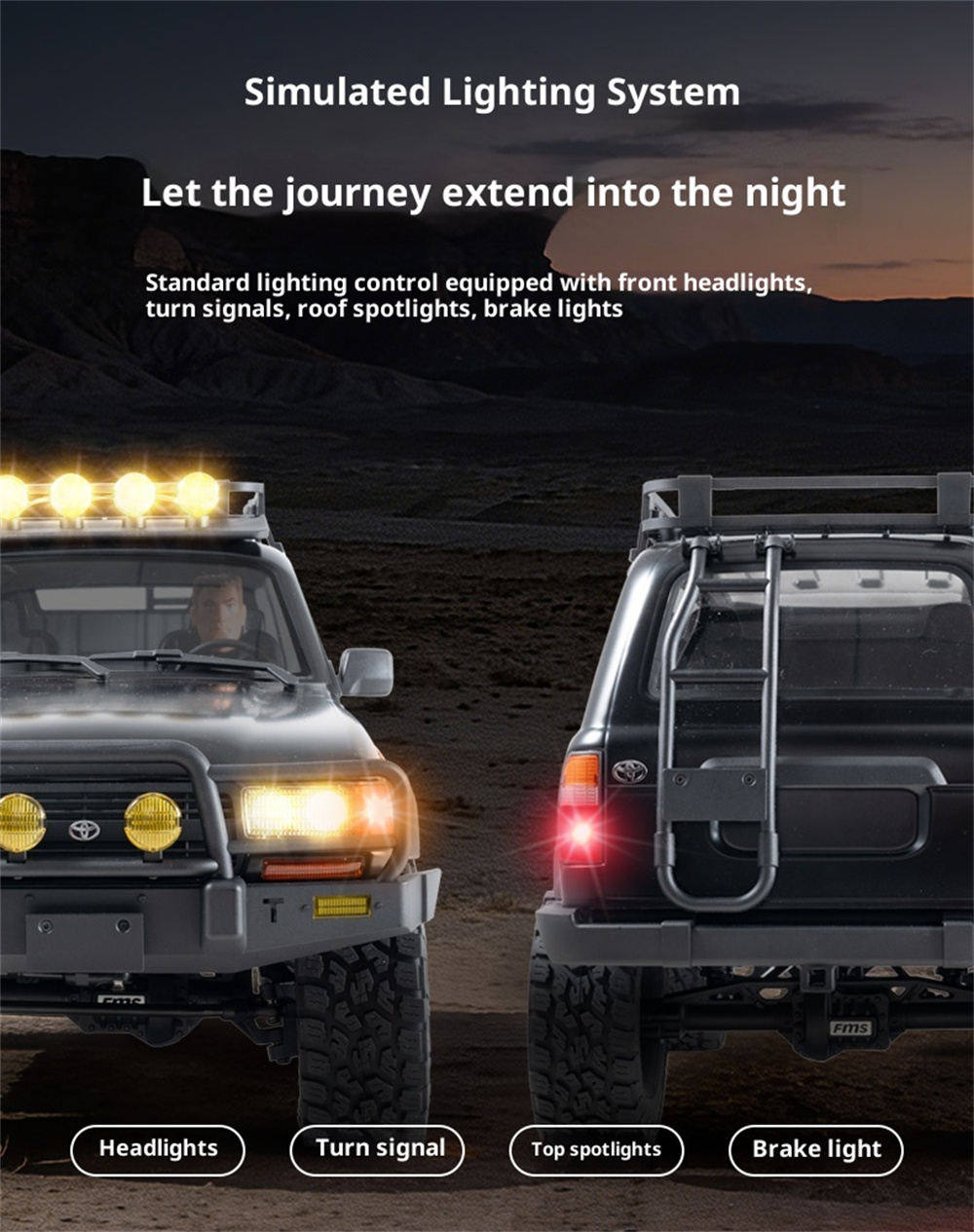

● Full LED Lighting System (Pre-Installed)

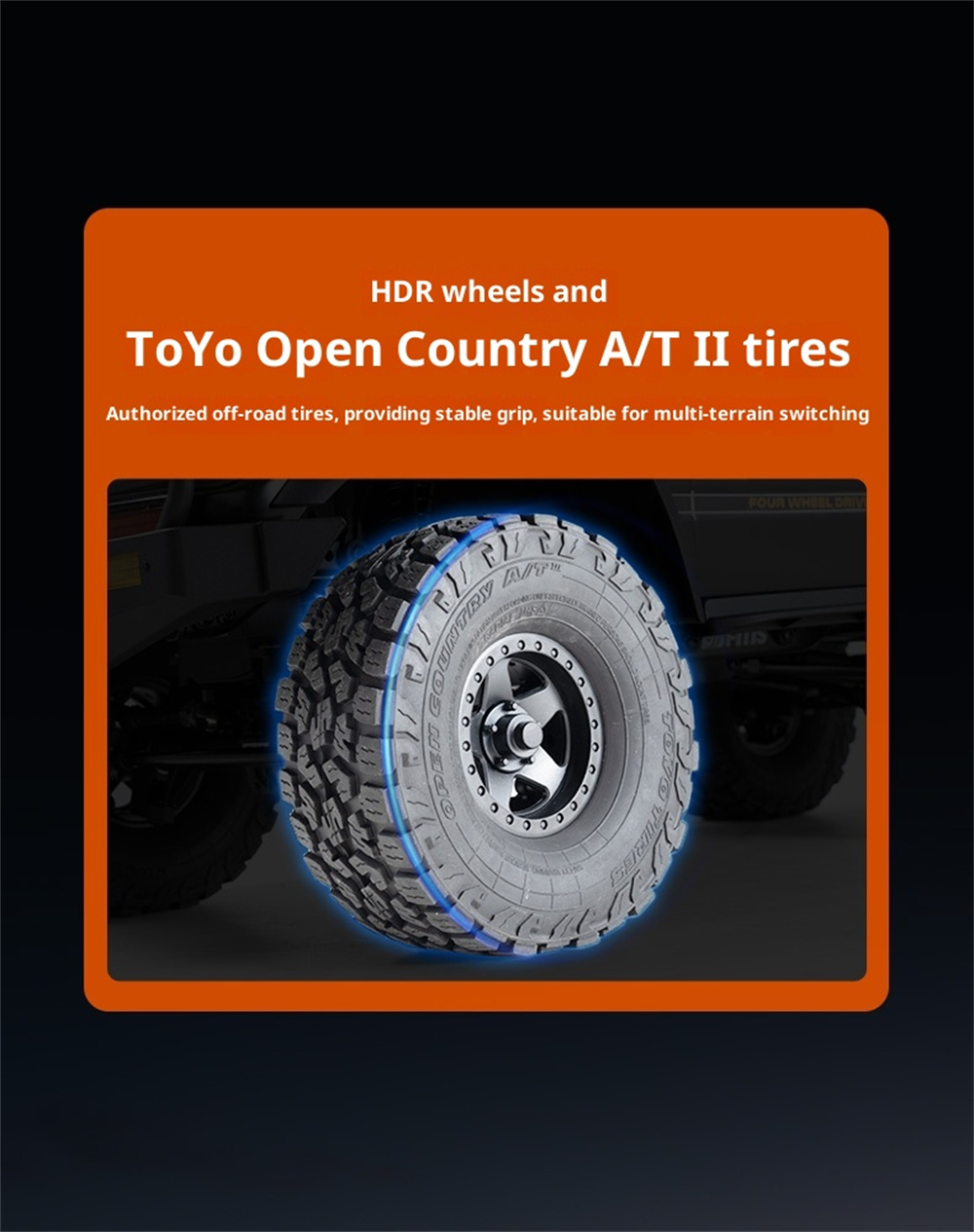

Headlights, turn signals (front, side, and rear), reverse lights, and more—magnetically activated via chassis connection.● HDR Licensed Off-Road Wheels & for TOYO Open Country A/T III Tires
Authentic scale performance wheels and aggressive all-terrain tires for realistic trail stance.

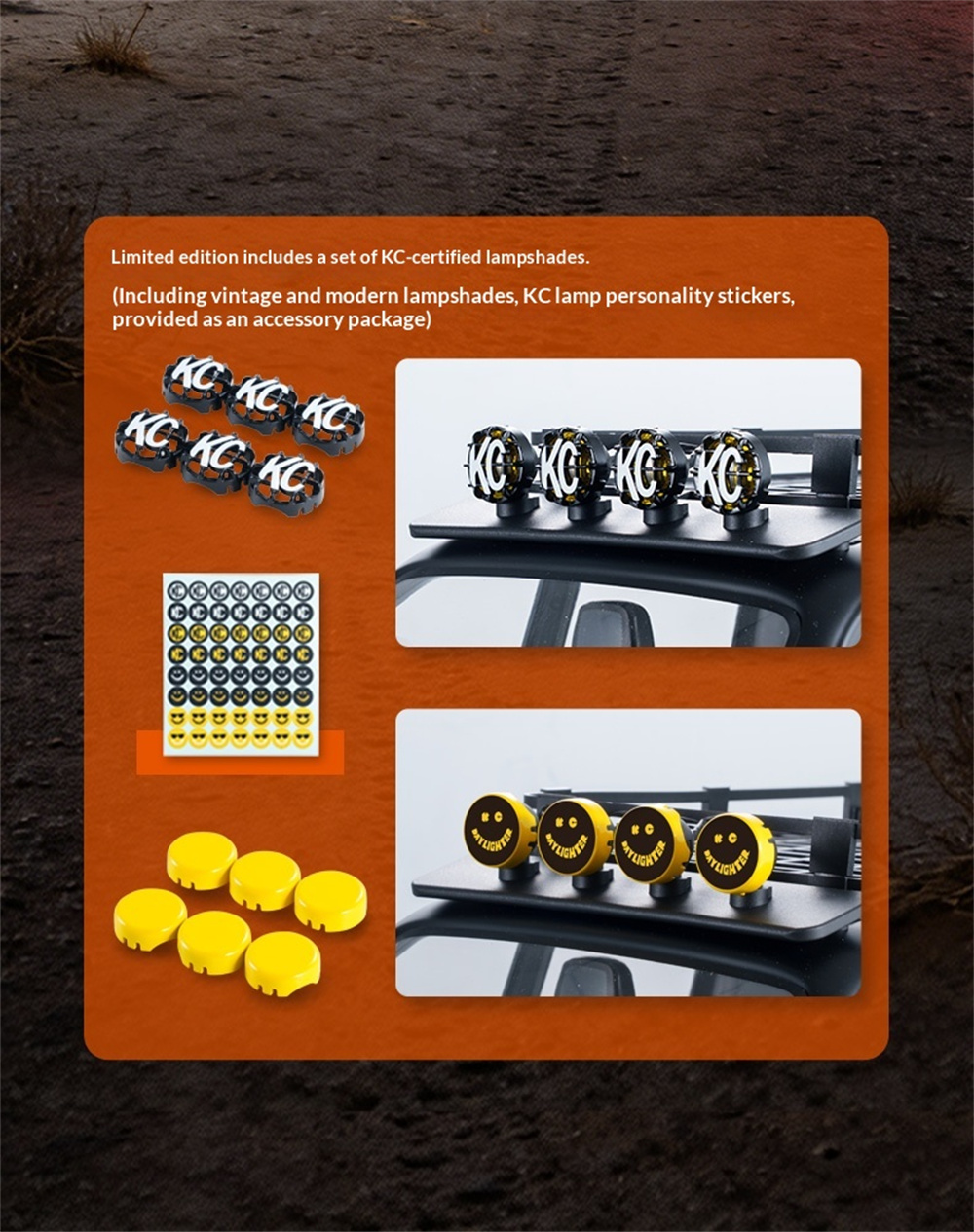

● KC Light Kit (Included)
Includes both vintage and modern KC-style lamp shades and KC logo stickers (not factory-installed).

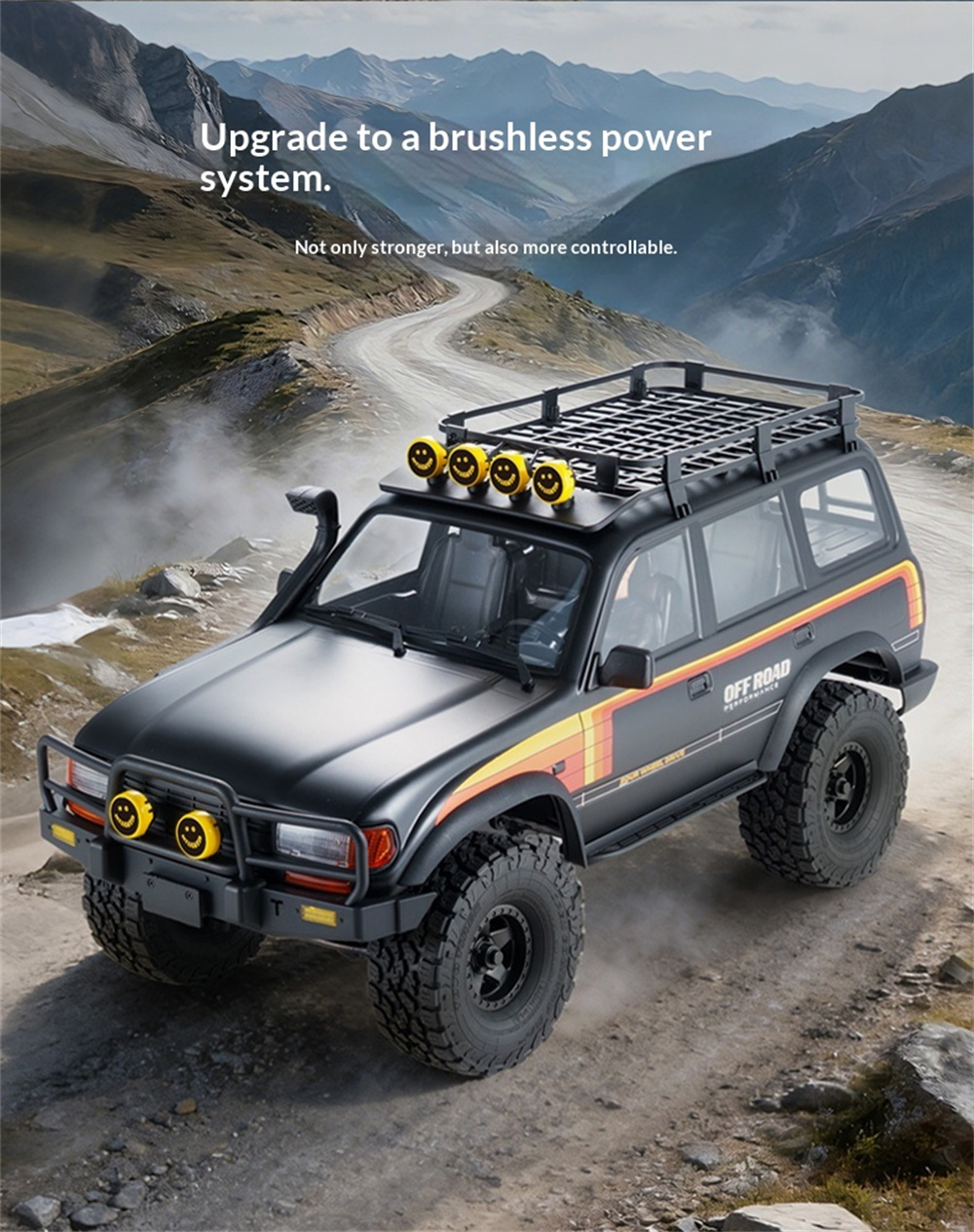

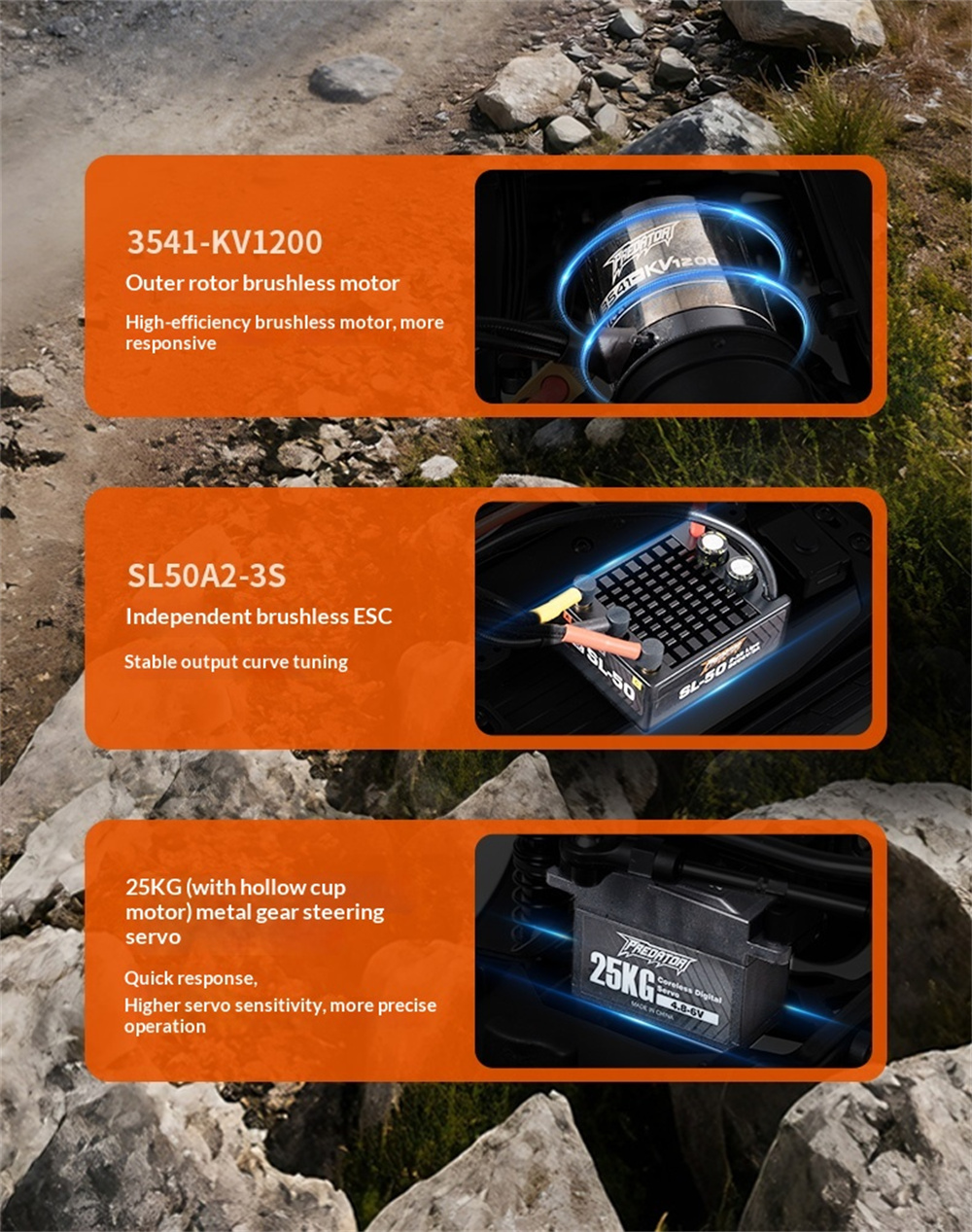

● Brushless Power System
3541 KV1200 Outrunner Brushless Motor
50A Brushless ESC with 6V/3A BEC
Top speed up to 20 km/h
Smooth, snail-speed crawling performance
● Selectable High & Low Speed Transmission
Two-speed gearbox for scale realism and superior terrain adaptability, controlled remotely.

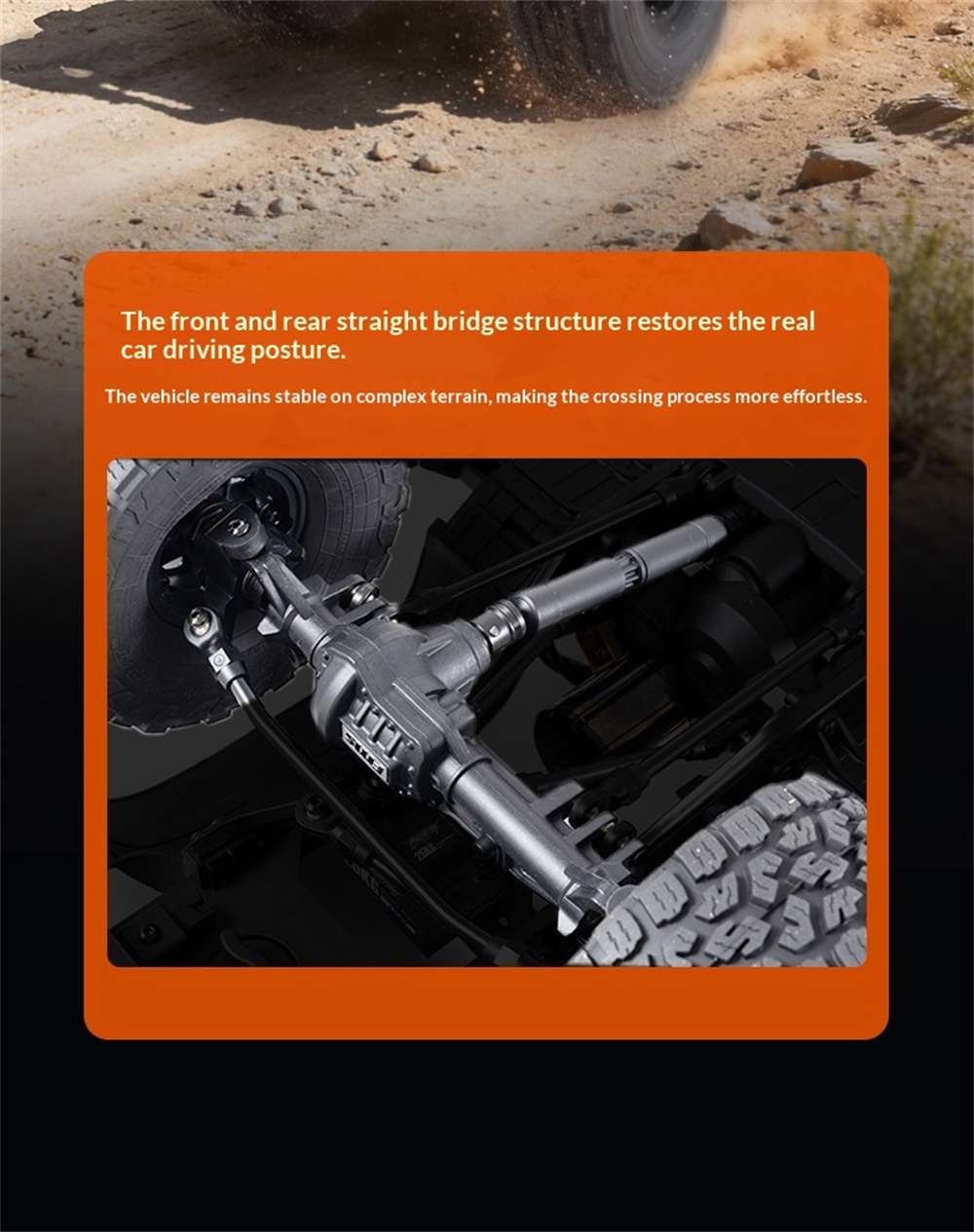

● Solid Axle Suspension
Authentic solid axles front and rear—no portals—for true scale accuracy and rock crawling articulation.

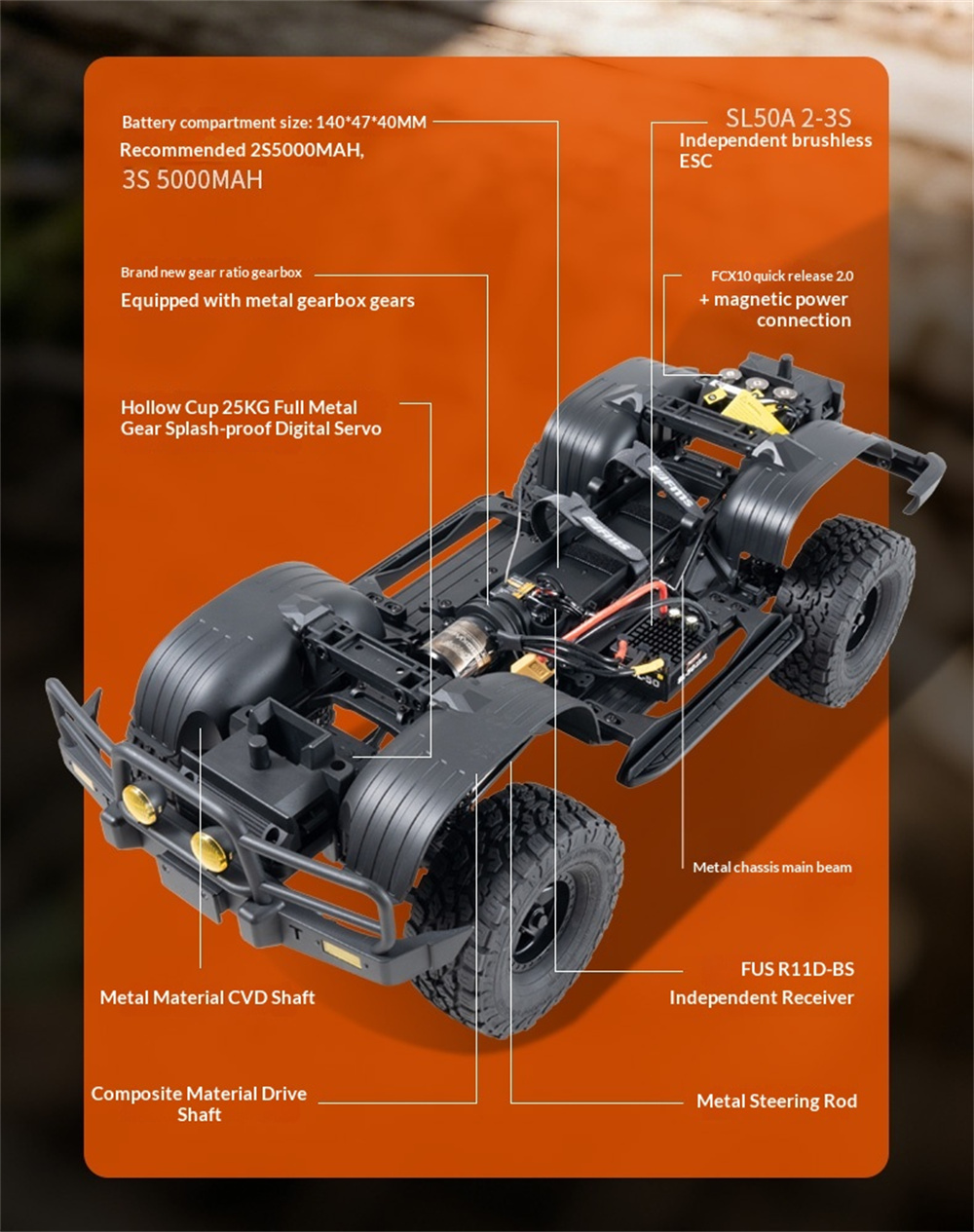

● RS Version with Upgraded Chassis
Premium-grade “RS” spec version with enhanced durability and performance tuning.
● Quick-Release Magnetic Body System (Patented)
Innovative magnetic interface integrates power and signal; knob-lock chassis allows fast access.

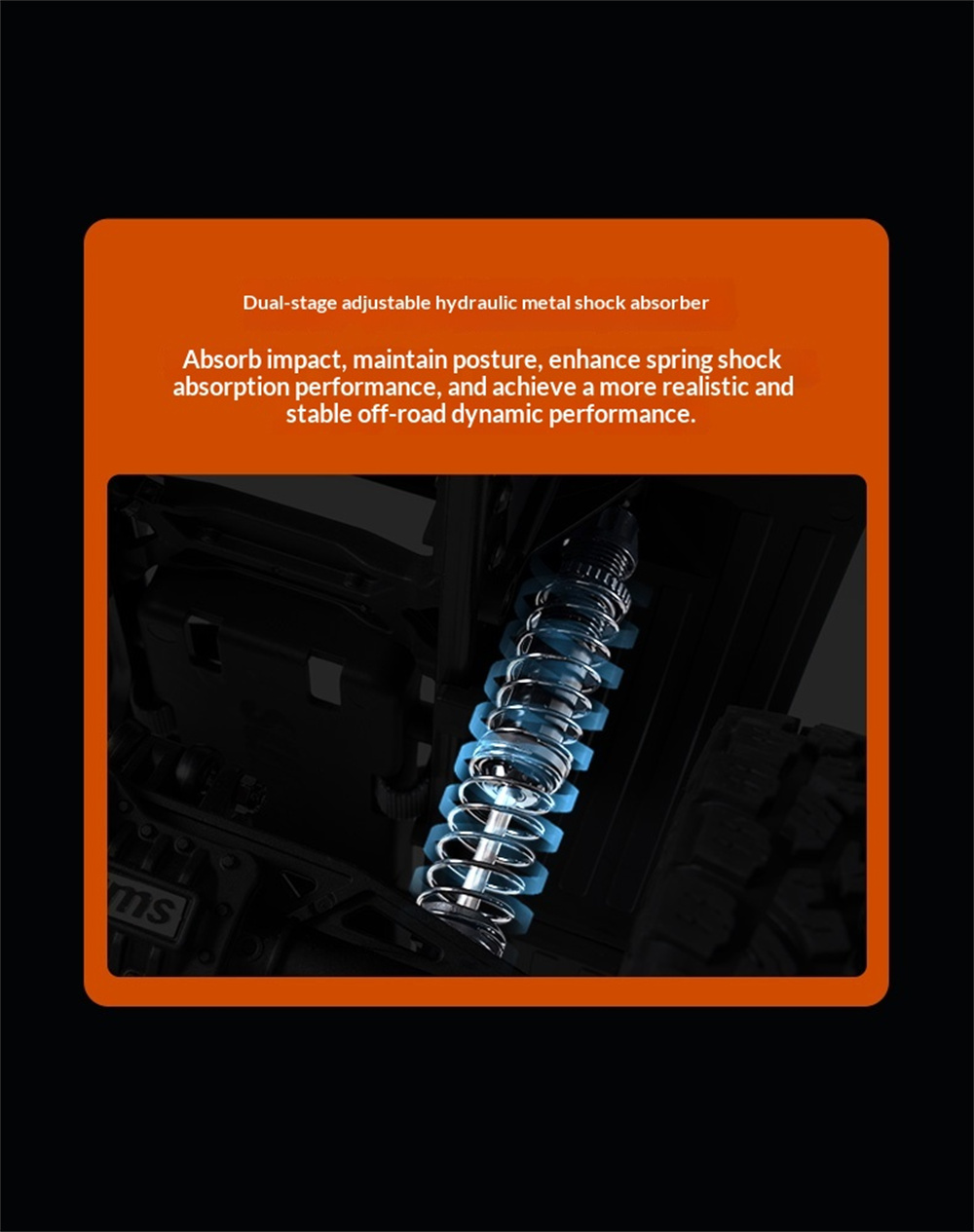

● Metal Height-Adjustable Oil Shocks
Tunable ride height and damping for trail or technical terrain.
● All-Metal Gear Train
Precision-cut metal gears for reliability and long-term durability.
● Full Ball Bearings
Smooth, efficient drivetrain with reduced friction and longer component life.

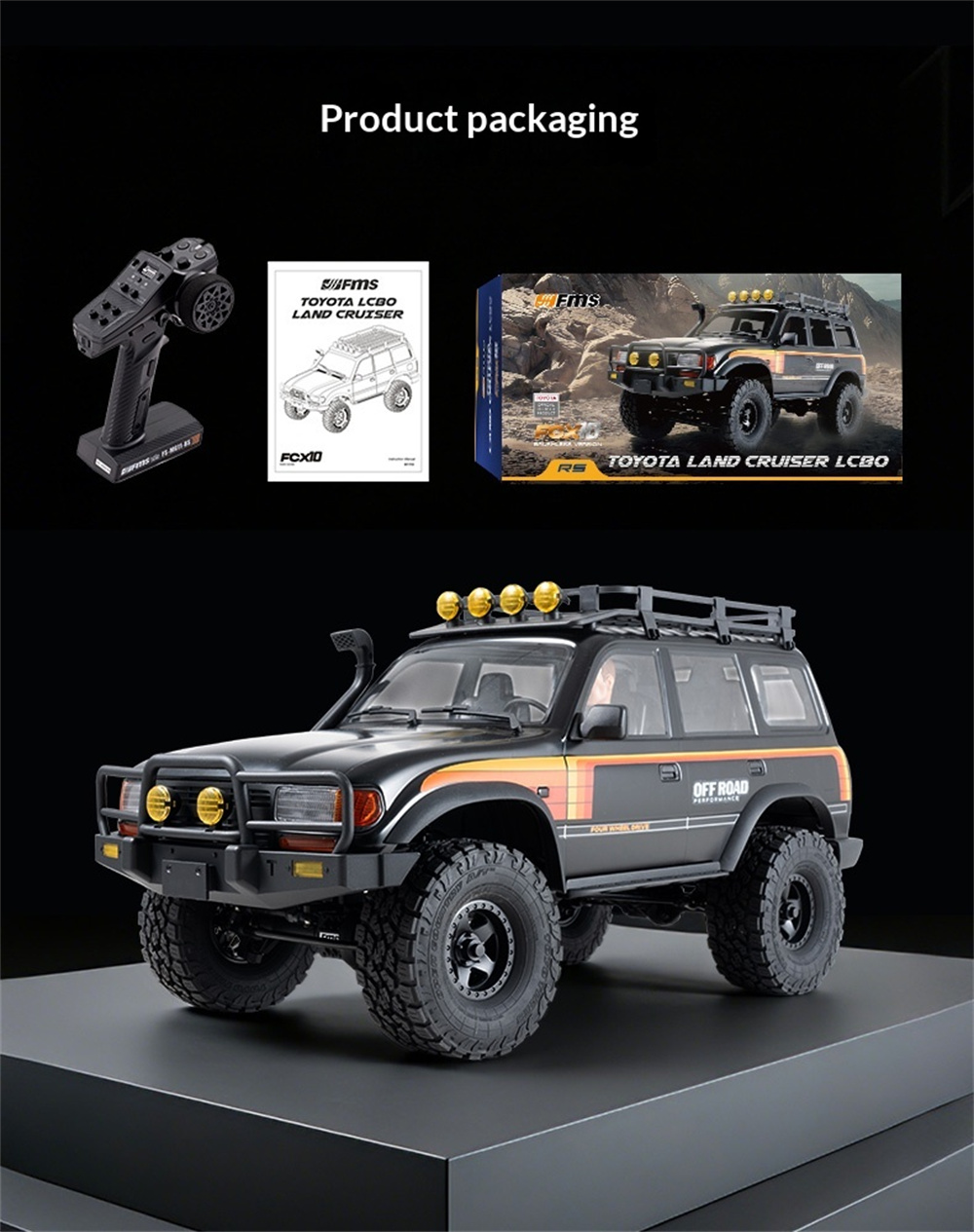

Package included:
1x RC Car(do not have battery)
1x Transmitter
1x Manual
