GEPRC Cinebot25 V2 123mm HD O4 Pro 2.5 Inch 4S Brushless Whoop RC FPV Racing Drone PNP BNF with TAKER F722 35A 32Bit AIO

Description

Description:

Cinebot25 V2 represents a major breakthrough by GEPRC in high-performance FPV drones, featuring an innovative shock-absorbing quick-release modular camera design.

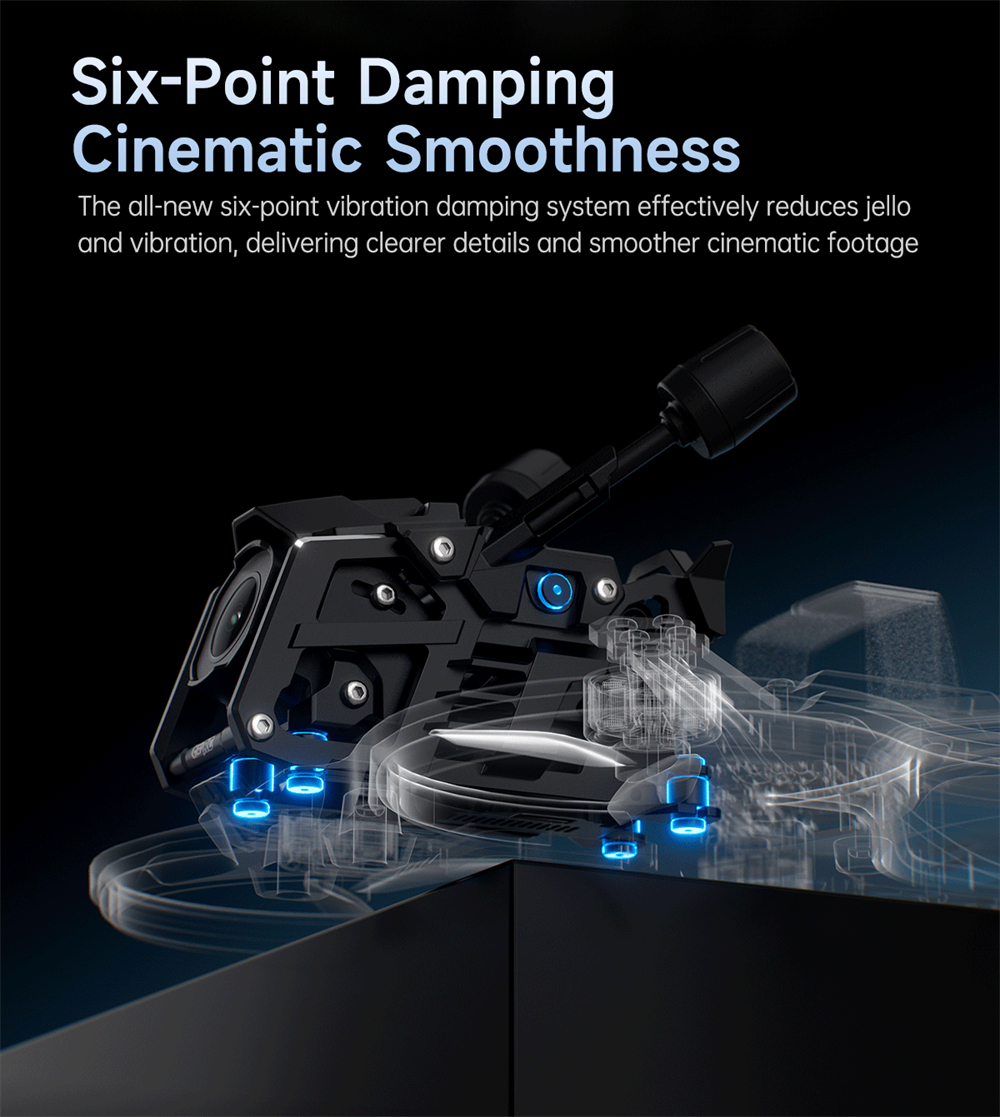

The DJI O4 Air Unit Pro is independently housed inside a suspended vibration-damping module, delivering smoother footage and effortless module swapping. This module can be quickly adapted across 2.5-inch and future multi-platform frames, enabling true “one core, multiple applications.”

Cinebot25 V2 offers pilots a more flexible, cost-effective, and high-definition flying experience.



Feature:

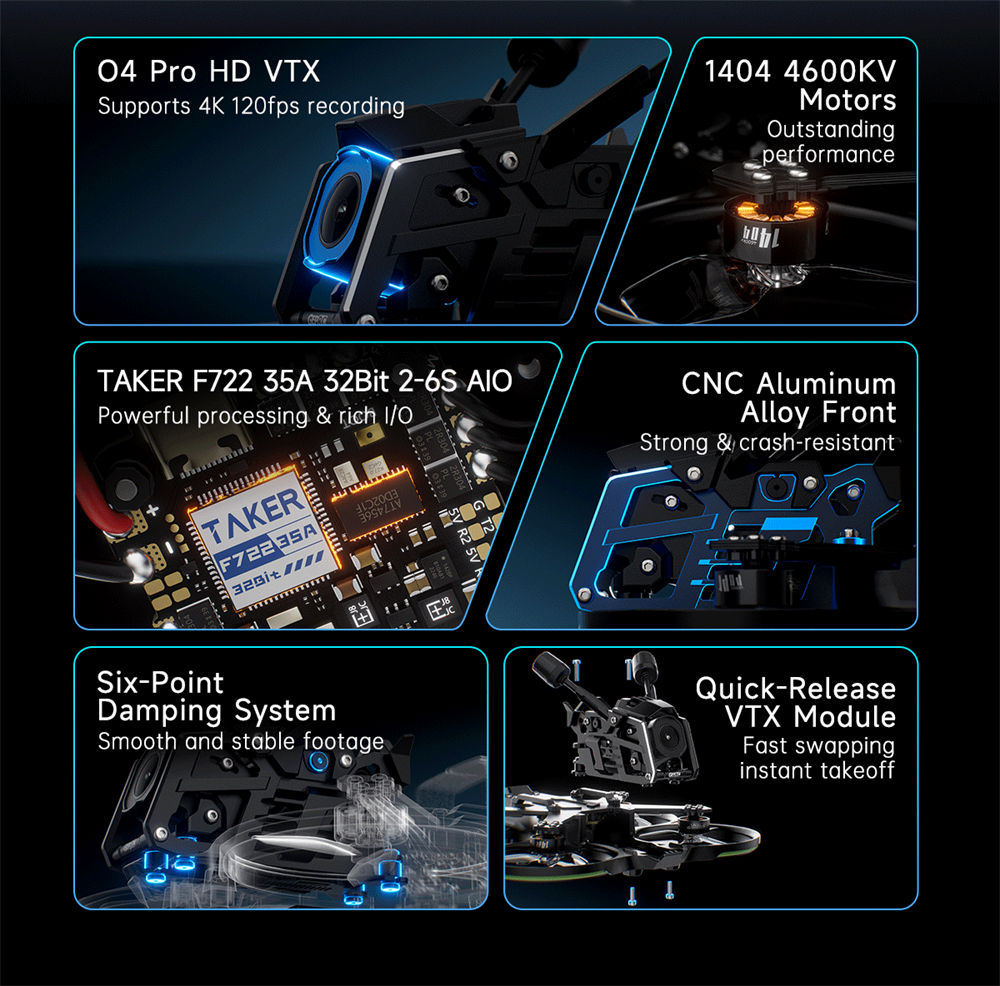

– Equipped with the latest DJI O4 Air Unit Pro digital transmission system.

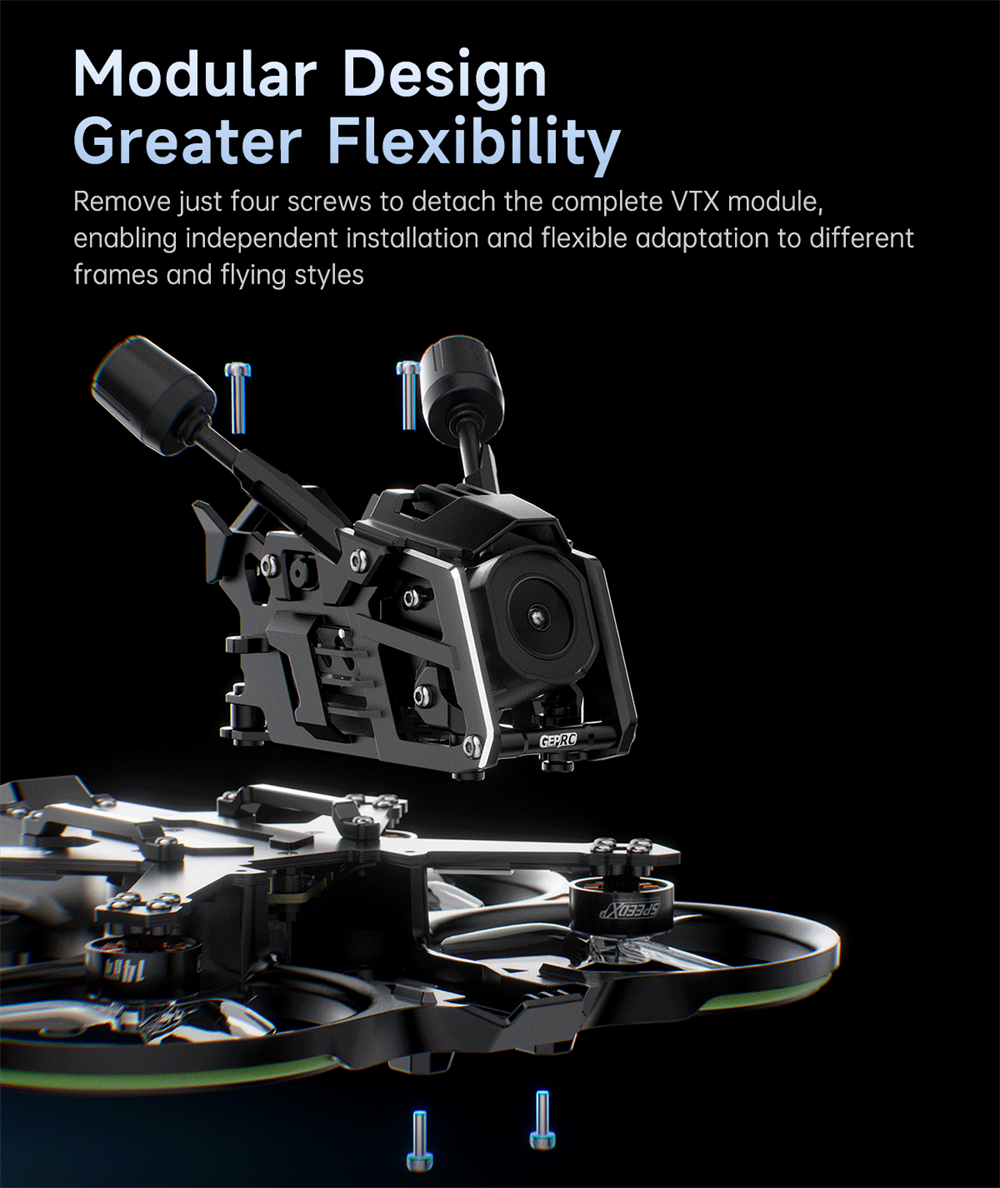

– Features a vibration-damped, quick-release modular VTX design.

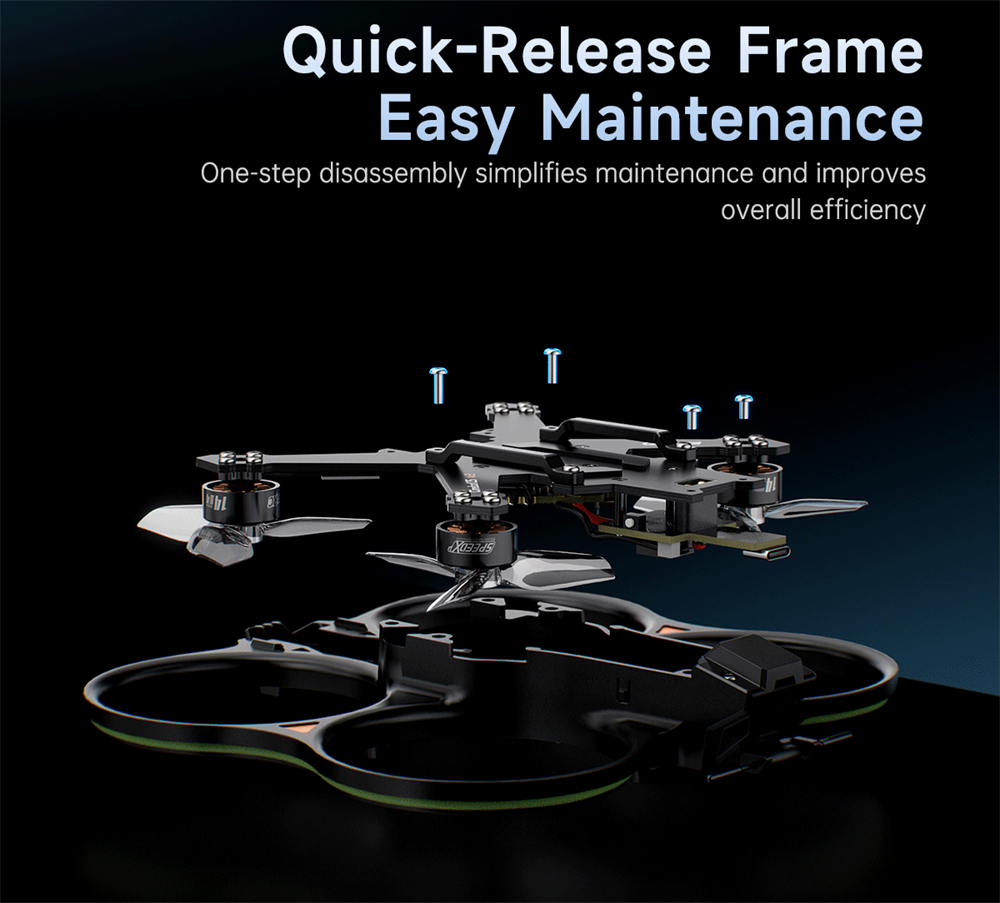

– Fully optimized frame structure with a high-coverage electronics bay.

– Dedicated function board integrating buzzer, LED strip BEC, and USB tuning port.

– Precision-designed canopy providing effective protection for the DJI O4 Air Unit Pro camera lens.

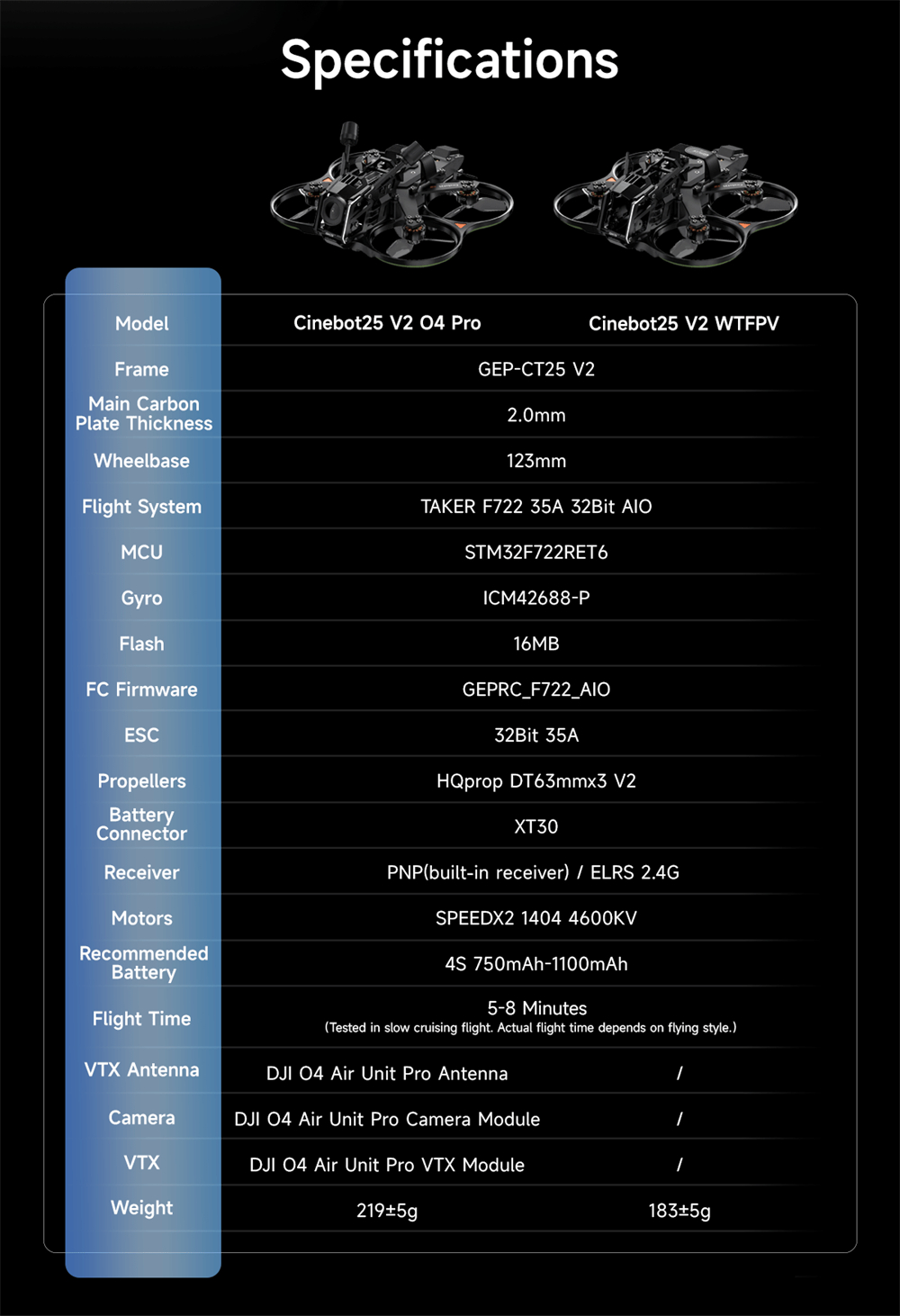

Specification:

Brand: GEPRC

Model: Cinebot25 V2

Item Name: 2.5 Inch 4S O4 Pro FPV Racing Drone

Model	Cinebot25 V2 O4 Pro Quadcopter	Cinebot25 V2 WTFPV Quadcopter
Frame:	GEP-CT25 V2
Main Carbon Plate Thickness:	2.0 mm
Wheelbase:	123 mm

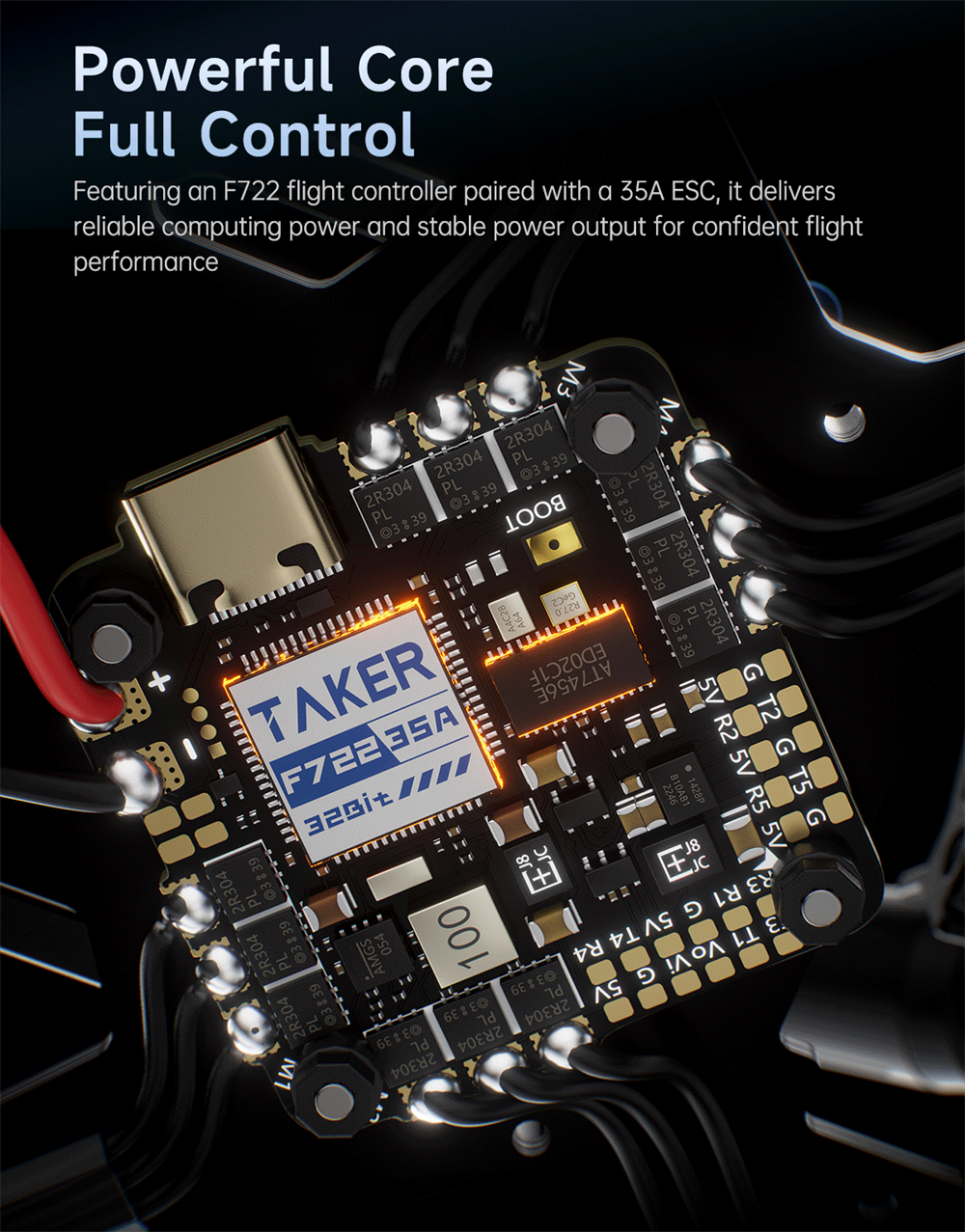

Flight System:	TAKER F722 35A 32Bit AIO
MCU:	STM32F722RET6
Gyro:	ICM42688-P
FC Firmware:	GEPRC_F722_AIO
Flash:	16 MB
ESC:	32-bit 35A
Motors:	SPEEDX2 1404 4600KV
Props:	HQProp DT63mmx3 V2
Battery Connector:	XT30
VTX:	DJI O4 Air Unit Pro	None
Camera:	DJI O4 Air Unit Pro Camera Module	None
Antenna:	DJI O4 Air Unit Pro Antenna	None
Receiver:	PNP (built-in receiver) / ELRS 2.4G
Weight (ELRS 2.4G Version):	219±5g	183±5g

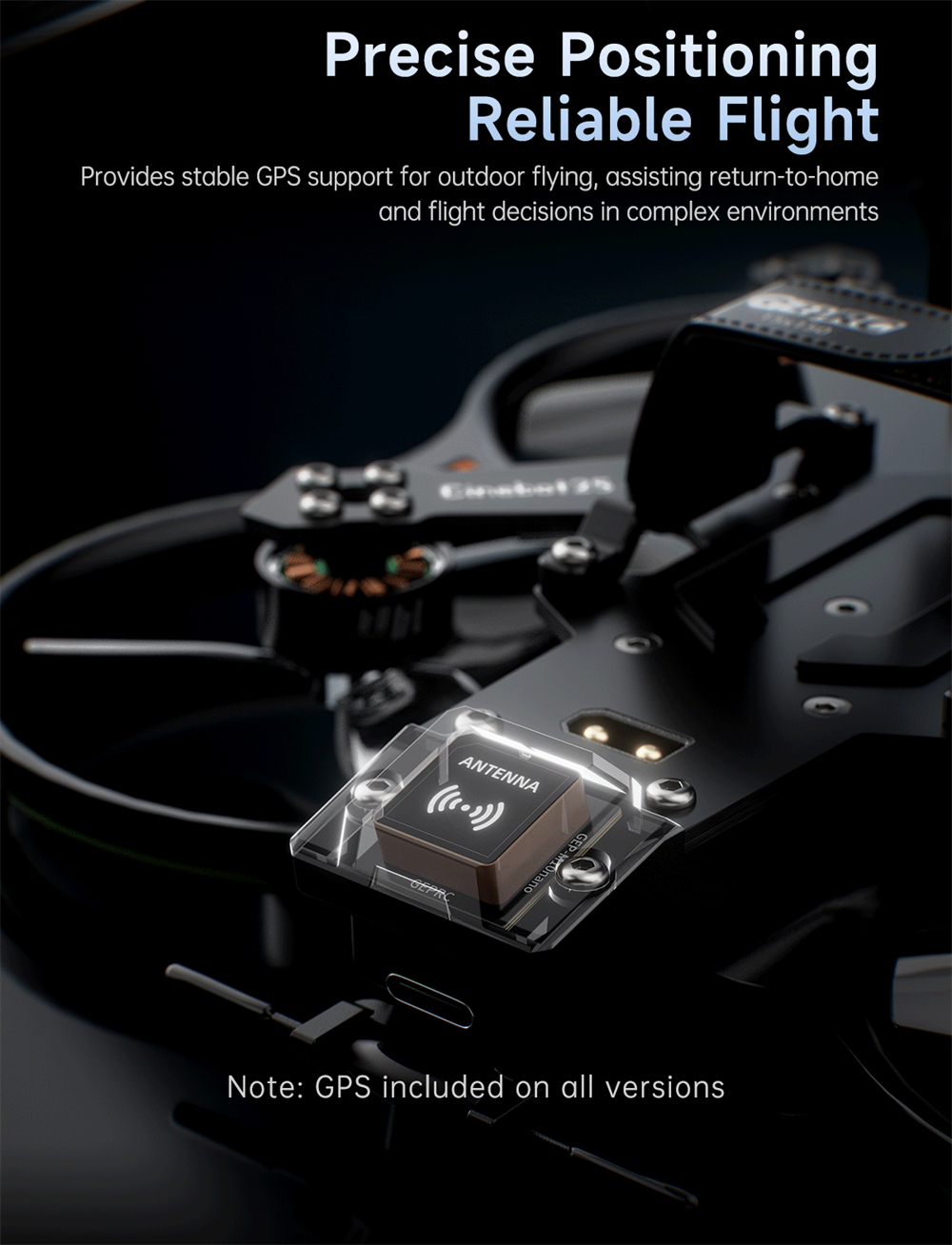

GPS:	GEP-M10nano
Recommended Battery: (Not included)	LiHV 4S 750–1100mAh
Flight Time:	5–8 minutes (Tested under slow cruising conditions; actual flight time depends on flying style.)

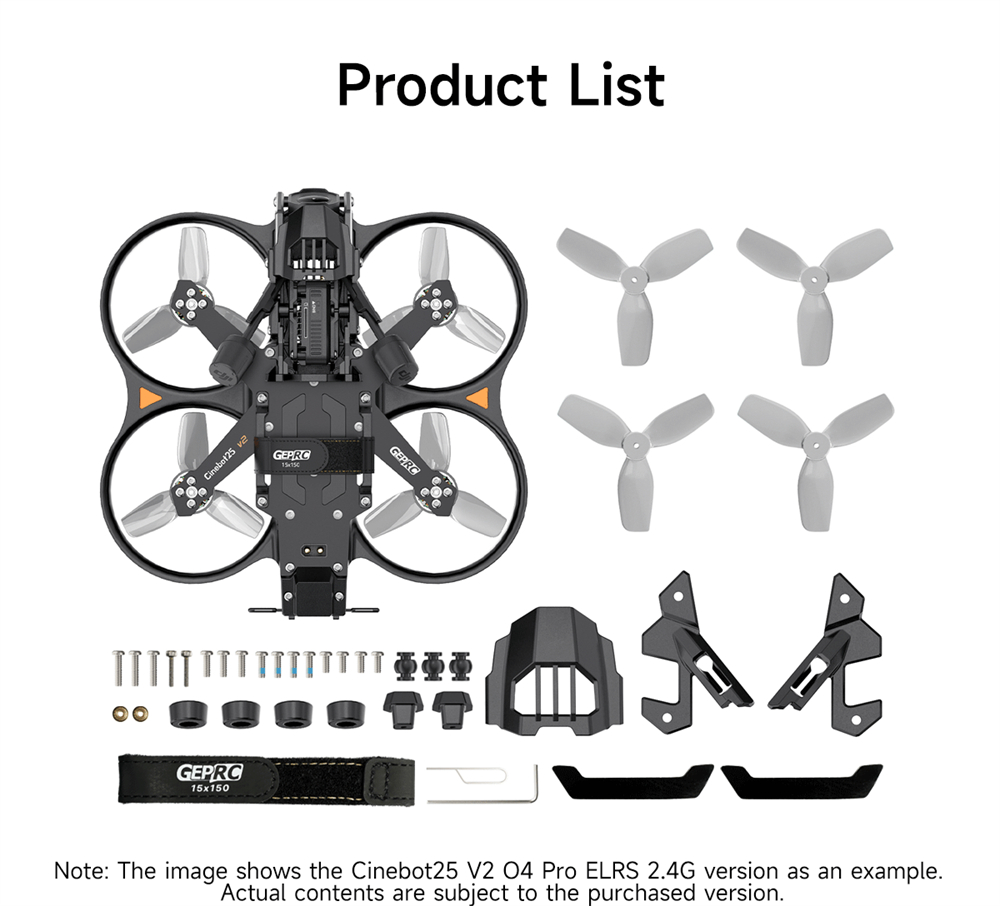

Package Included:

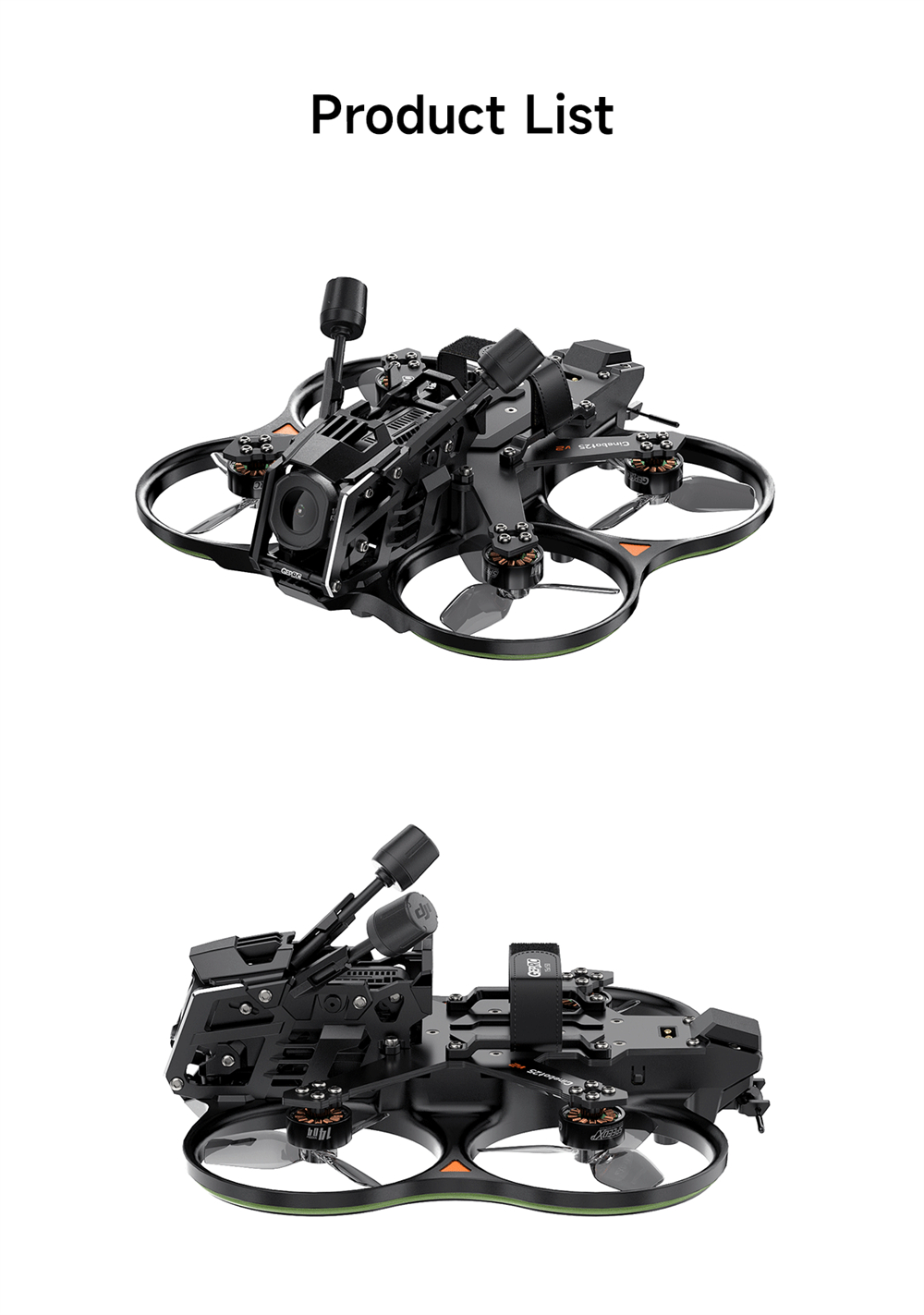

1 × Cinebot25 V2 Quadcopter

2 × HQprop DT63mmx3 V2 (pairs)

1 × 15*150 mm Battery Strap

1 × L-shape Hex Wrench 1.5 mm

1 × Spare Screw Pack

1 × Battery Anti-Slip Pad

1 × Binding Pin

4 × Rear Landing Pads (Injection-molded)

2 × Front Bottom Landing Pads (Injection-molded)

1 × Front Top Cover

2 × O4 Antenna Mounts (Injection-molded)

2 × Acrylic Plates

3 × Damping Balls

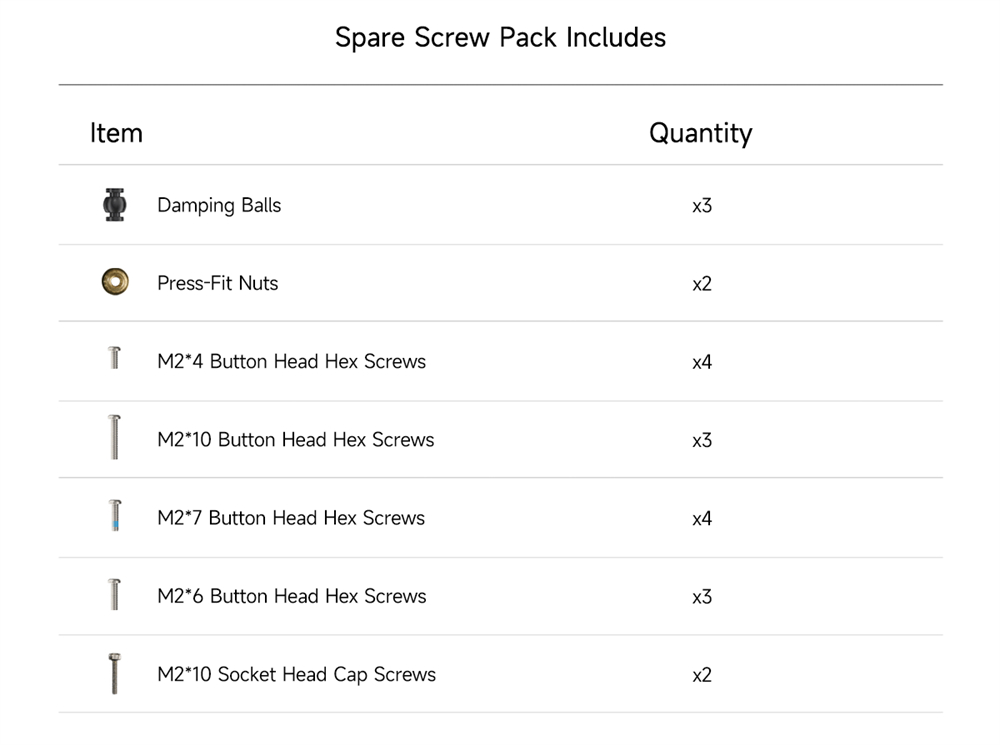

Spare Screws Include:

2 × Presss-fit Nuts

4 × M2*4 Button Head Hex Screws

3 × M2*10 Button Head Hex Screws

4 × M2*7 Button Head Hex Screws

3 × M2*6 Button Head Hex Screws

2 × M2*10 Socket Head Hex Screws



Additional Parts Included in Certain Versions

1 × Receiver Female Connector Cable (O4 Pro PNP)
