Happymodel Mobula8 HD O4 85mm Wheelbase 1-2S Micro Whoop FPV Racing Drone BNF ELRS with EX1103 11000KV Motors

Happymodel Mobula8 HD O4 85mm Wheelbase 1-2S Micro Whoop FPV Racing Drone BNF ELRS with EX1103 11000KV Motors

$512.98

SKU: POA12107541 Categories: , ,

Description

Description:

The Happymodel Mobula8 O4 micro FPV whoop comes out now . It comes with DJI O4 air unit which would provide excellent and unbelievable FPV footage. We added FOV Extender for the O4 camera on Mobula8, this would be a great improvement for FPV flying.



Features:

– Equipment with DJI O4 air unit and external FOV Extender

– ND Filters ready

– 2S battery support Powerful and Smooth freestyle flying

– UART ExpressLRS receiver support stable control link

– Recommend use 2S 550Mah battery



Specifications:

Brand Name: Happymodel

Item Name: Mobula8 O4 2S 85mm Digital HD Micro FPV whoop

Wheelbase: 85mm

Size: 120mm*120mm*53mm

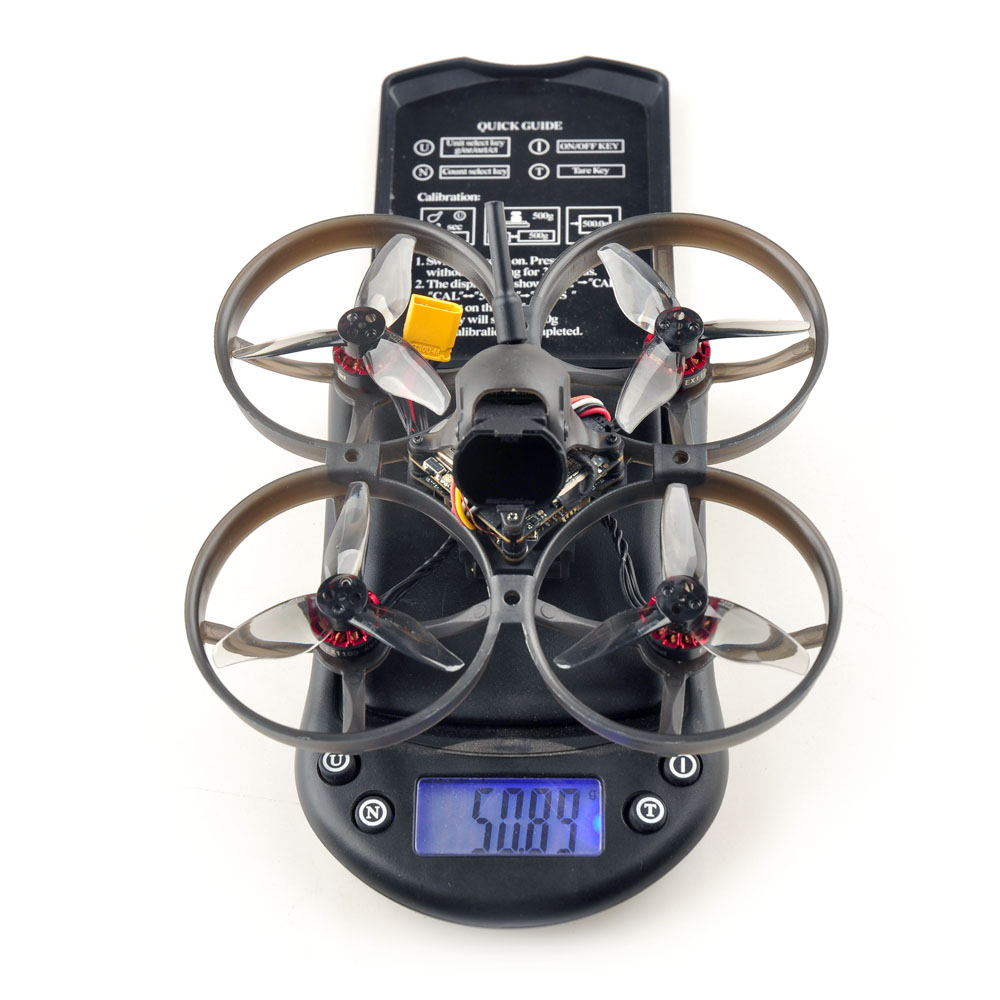

Weight: 50g



Spare parts specifications:

Motor

Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers

Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4GBuilt-in BMP280 BarometerBuilt-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19Firmware target: Z-H-30
Default protocol: DSHOT300

Onboard UART

ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

DJI O4 Air Unit

Weight:
Air Unit (camera module included): Approx. 8.2 g
Transmission Module: 30×30×6 mm (L×W×H)
Camera Module: 13.44×12.36×16.50 mm (L×W×H)
Camera Cable Length: 50mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency varies by region. Refer to local regulations.
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz:
<30 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Live View Quality: 1080p at 30/50/60/100fps

FOV Extender for O4 Camera

Weight: only 3.2gram
Built-in widening lens
FOV angle up to 150 degree
3d printed Camera holder
Include UV filter, ND8 filter, ND16 filter

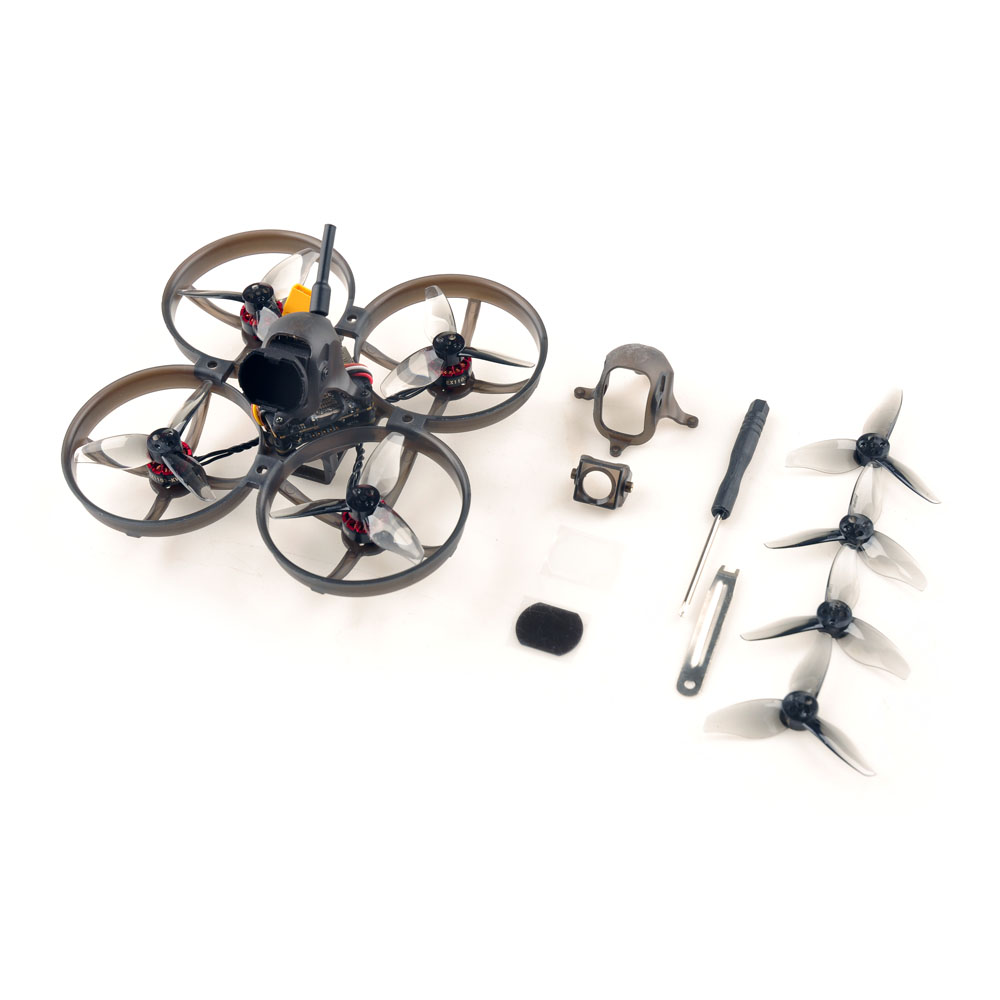

Package includes:

Item Name

Qty

Happymodel Mobula8 Frame

1

CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4

1

EX1103 KV11000 brushless motor

4

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

1

DJI O4 Air unit or no DJI O4 Air unit version

1

FOV Extender for O4 camera

1

Angle-adjustable Canopy

1

Screw driver

1
