Orlandoo Hunter OH32V01 1/32 2.4G 4WD Mini Van Truck Brushed/Brushless RC Car KIT Unpainted Multi-functional Unassembled DIY Parts Micro LED Light Off-road Toys Remote Control Vehicles Models

Description

Description:

Basic information	Brand:Orlandoo hunter Item No:OH32V01 Scale:1/32 Color:White	Power System	Only brushed and brushless version has following parts ESC:Mini brushed/TS0003 brushless esc Motor:NS0120-B 120 RPM motor/BL1104/50 1104 KV4300 reduction ratio 1/50 motor Steering Servo:AS0022 2.2g steering servo
Transmitter	Only brushed and brushless version has D4L+D401E Frequency:2.4G Channel:4CH Required Battery:4X 1.5V AA battery(not included)	Battery	Not Included Recommended Battery:7.4v 260mah battery,product id:2833668(not included)

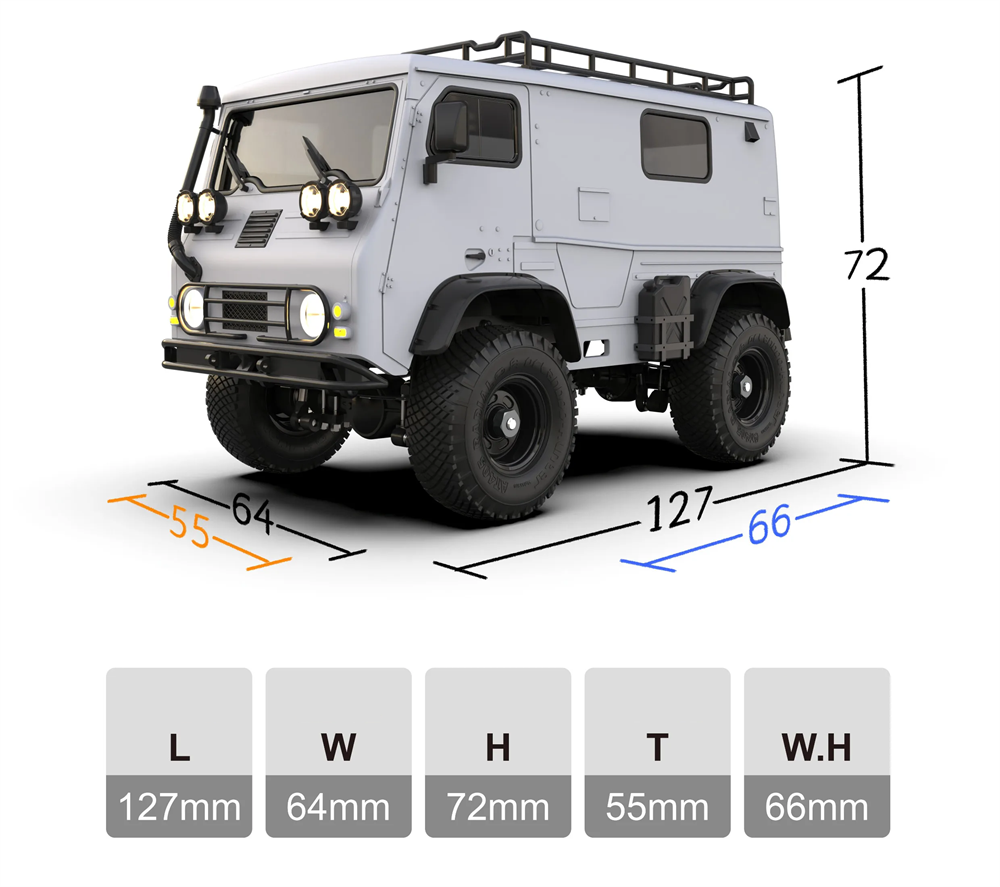

Other	Material:PA+metal+electronic parts	Dimension	Car Size:127*64*72mm Track Width:55mm Wheelbase:66mm



Features:

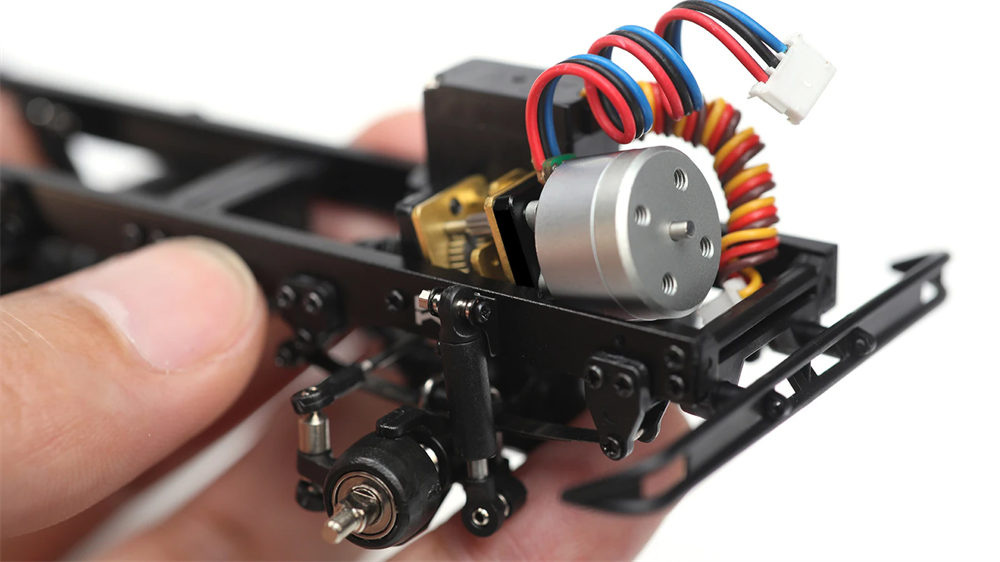

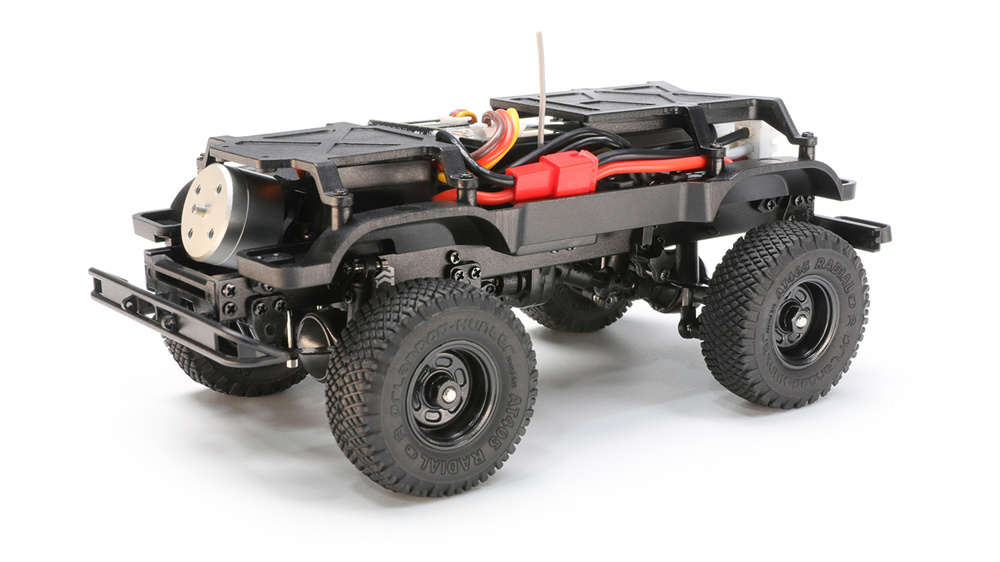

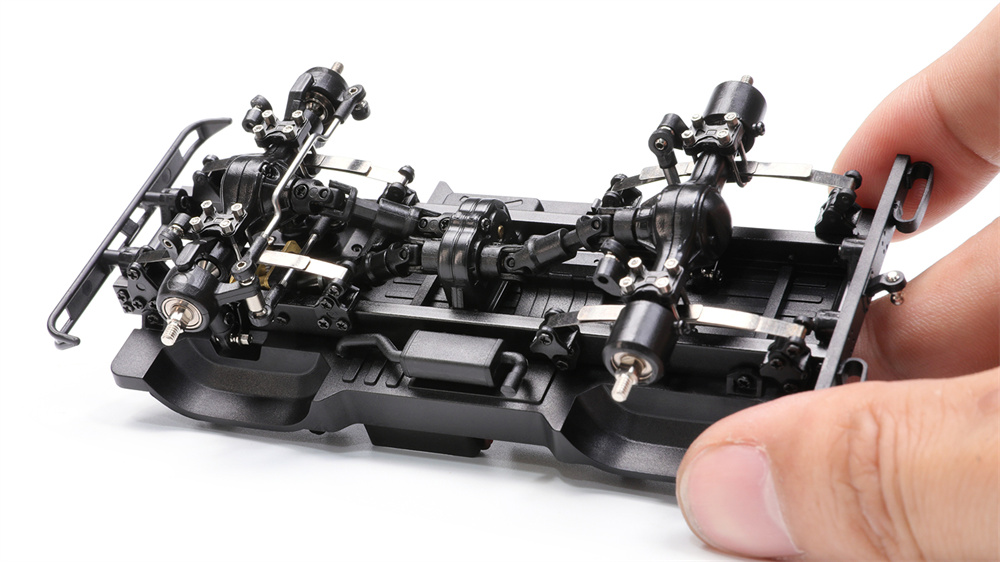

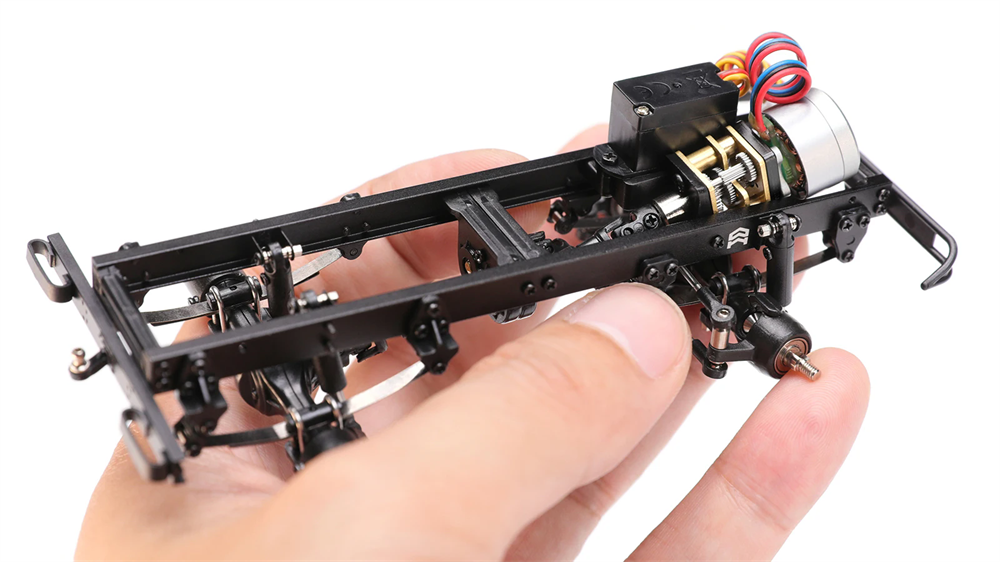

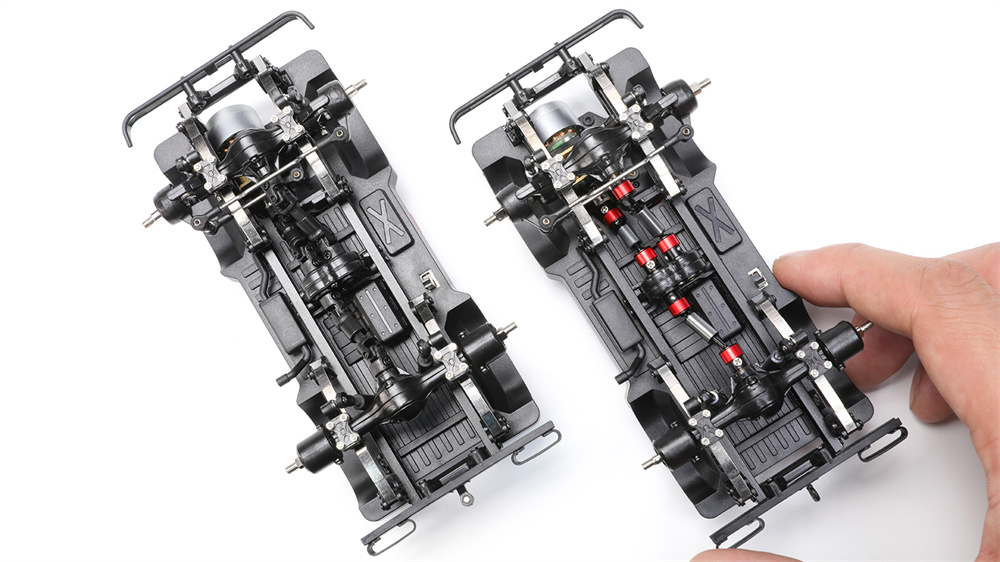

The chassis utilizes a non-load-bearing aluminum alloy frame design. The front-mounted motor/servo layout significantly makes the center of gravity forward, replicating the mechanical rationale of a real vehicle while providing ample space for electrical equipment installation in the middle and rear.

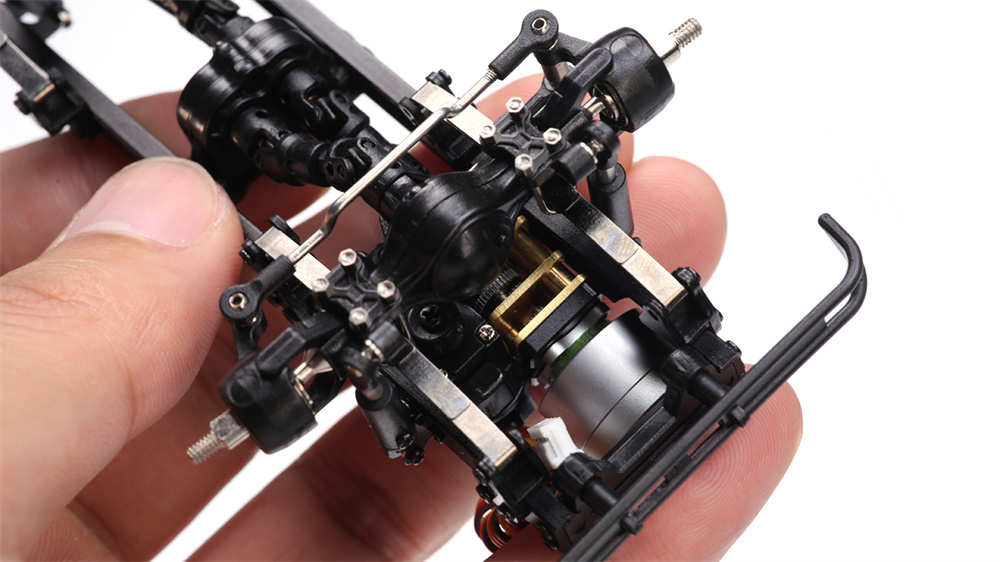

The tilted motor mount design ensures more direct power output to the transfer case, reducing the impact of speed differences caused by non-uniform speed universal joints. Power is output in reverse order via a centrally located transfer case, effectively avoiding axle effects during acceleration and deceleration.

The steering axle employs a forward Ackermann design, providing a smaller turning semi-diameter while maintaining simulation.

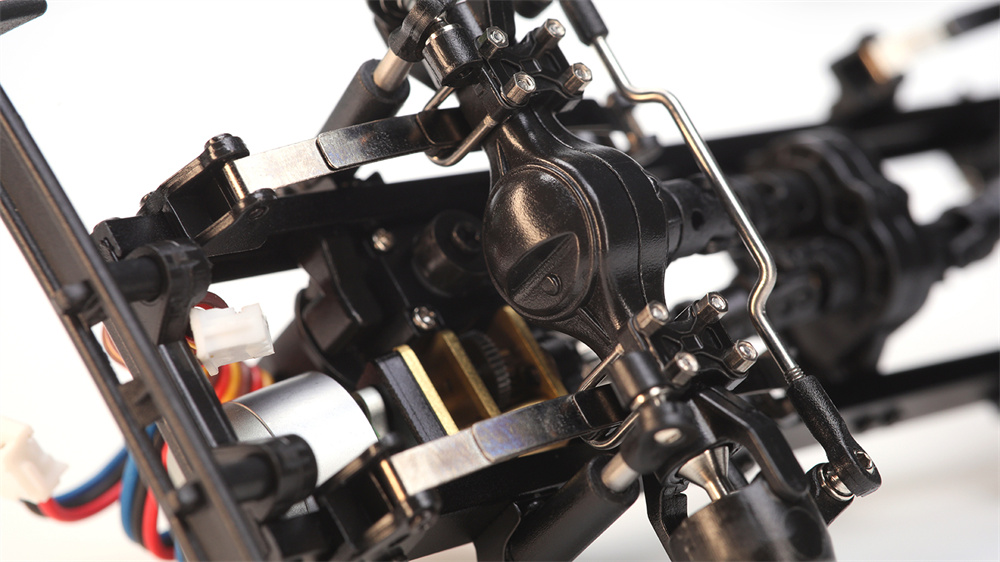

Both front and rear suspensions utilize multi-layer super-thin leaf springs, secured with U-bolts. This design simulates cross-axle driving posture while maintaining realism.

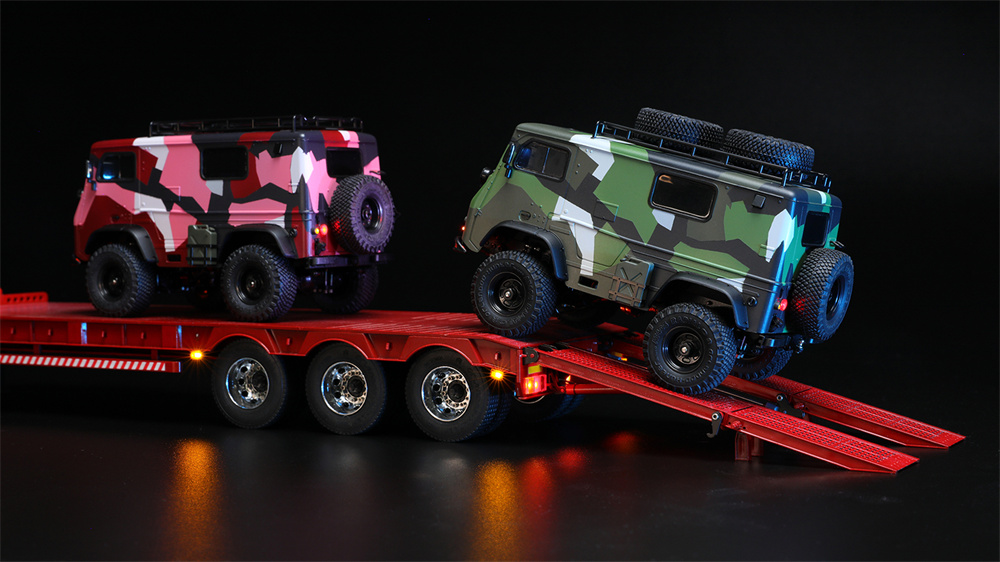

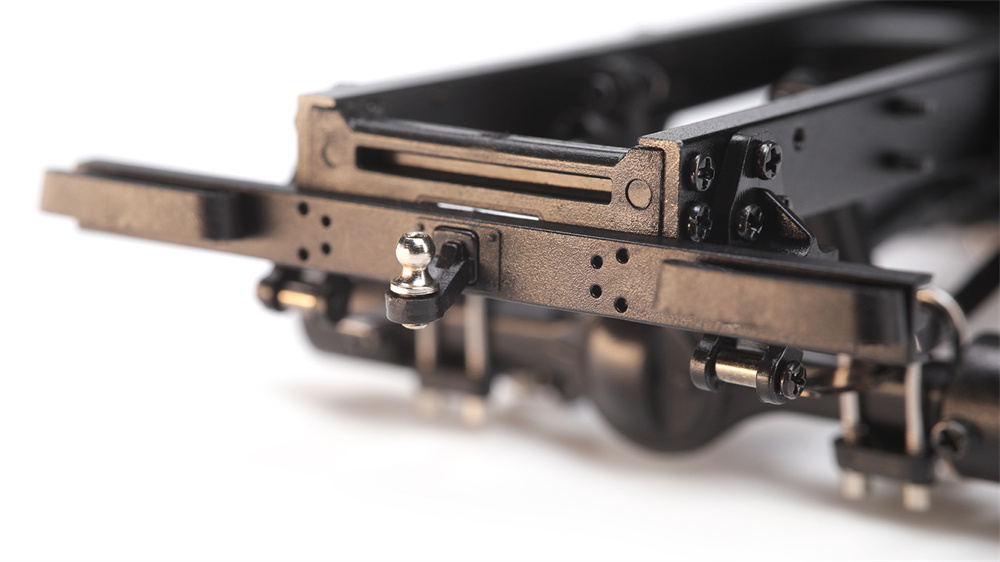

Two types of rear tow hooks are available, with the ball-joint version suitable for towing small trailers or RVs.

The integrated floor/equipment plate design creates a more unified chassis and provides more space for upper-level electrical equipment installation.

The optional metal driveshaft and damping cylinder provide smoother power transmission and suppress excessive vibration.

Once the power and electrical equipment is installed, the large space on the second floor can accommodate large speakers and even miniature image transmission equipment.

Note:

1. Age requirement is 14+

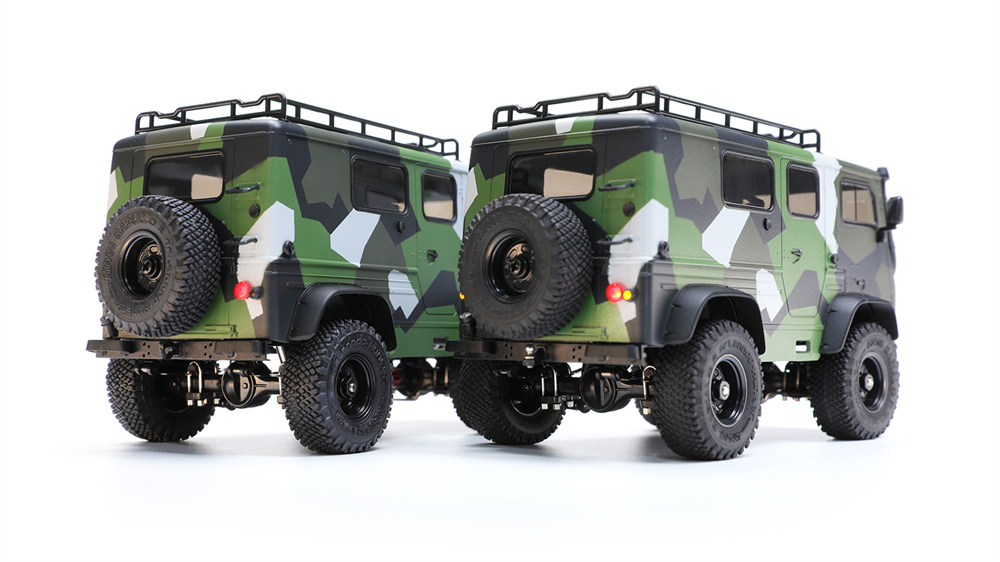

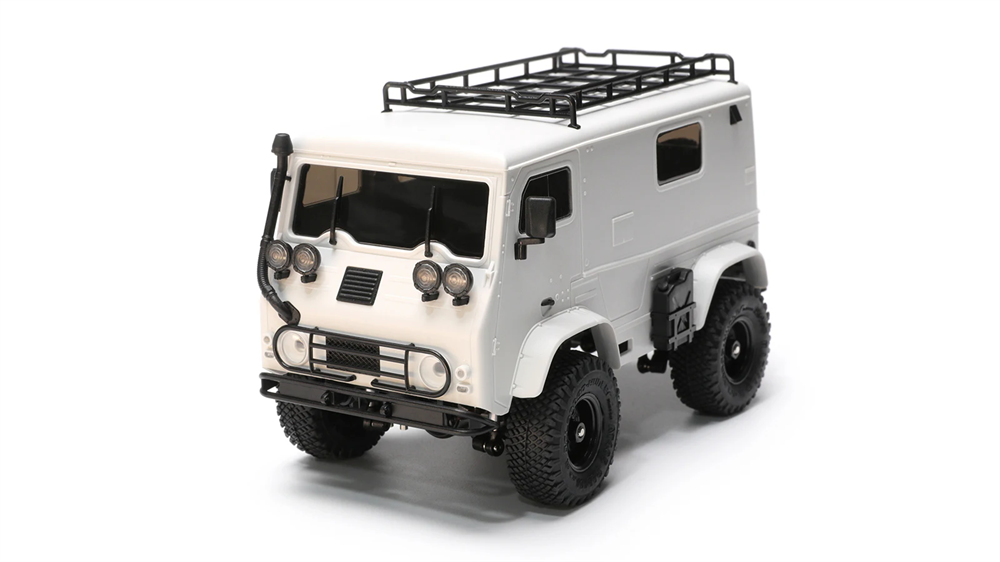

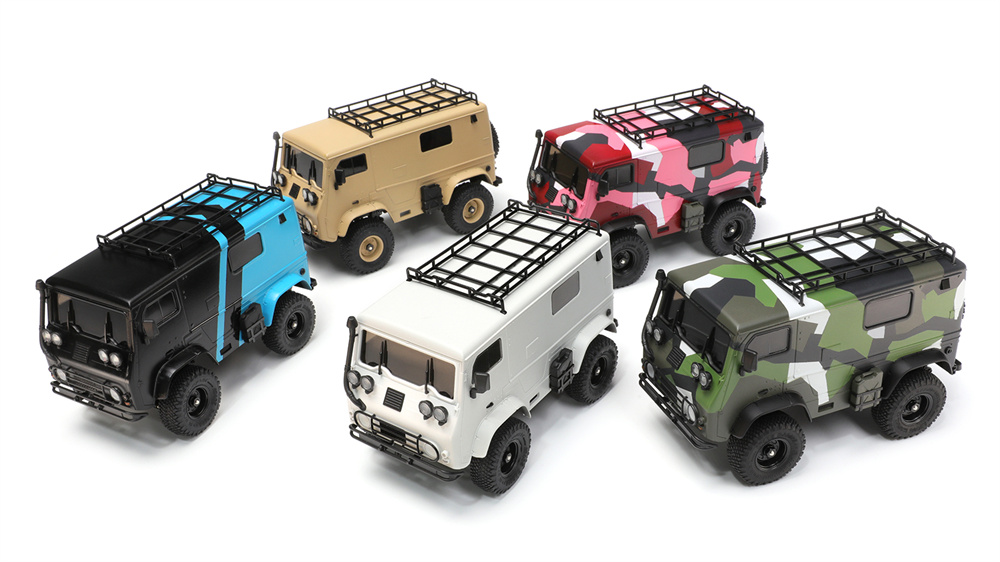

2. Spare parts are not assembled, and the shell is white color,unpainted,the body shell shown in the pictures are for reference

3. Prepare diagonal pliers, glue, pen knife, paint and other tools

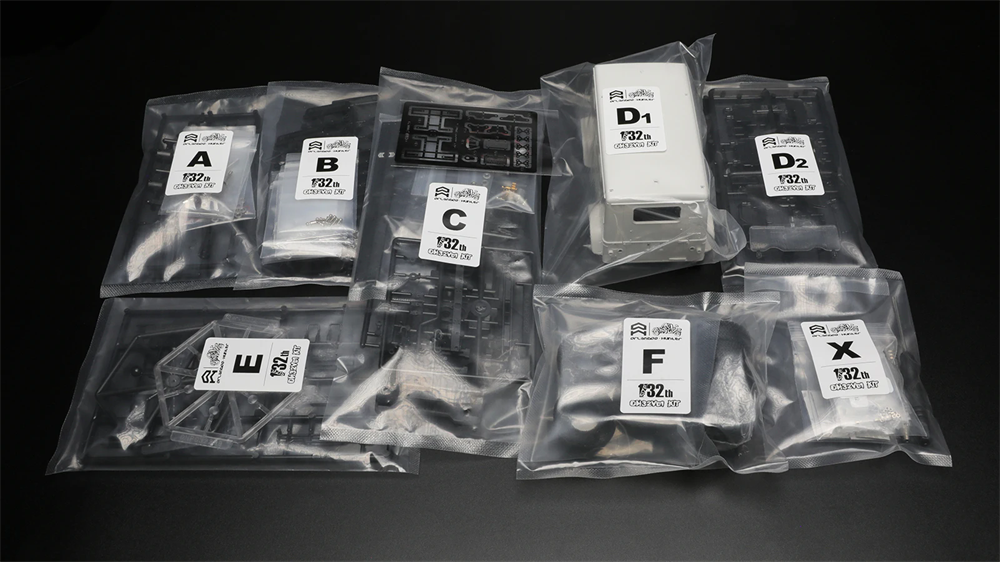

4. The kit version package does not contain any electronic equipment

5. Add motor, steering gear, battery, transmitter, receiver, can be moved after electric adjustment

6.This rc car kit needs to be assembled by yourself

KIT Version Package Included:(which version is optional chosen by yourself)
1X RC Car(do not have all electronic parts)

1X Instruction Manual

With Brushed Set Version Package Included:(which version is optional chosen by yourself)

1X RC Car(do not have battery and chager)

1X Instruction Manual

With Brushless Set Version Package Included:(which version is optional chosen by yourself)

1X RC Car(do not have battery and charger)

1X Instruction Manual
